Display
Display diagonal |
18.5 " |
Vertical scan range |
60 - 75 Hz |
Viewable size, horizontal |
409.8 mm |
Viewable size, vertical |
230.4 mm |
Aspect ratio |
16:9 |
HD type |
HD |
Response time |
5 ms |
Native aspect ratio |
16:9 |
Display resolution |
1366 x 768 pixels |
Viewing angle, horizontal |
170 ° |
Viewing angle, vertical |
160 ° |
Pixel pitch |
0.3 x 0.3 mm |
Display brightness |
250 cd/m² |
3D |
N |
Display |
LED |
Ports & interfaces
Composite video in |
1 |
AC (power) in |
Y |
DVI port |
N |
Composite video out |
1 |
HDMI ports quantity |
1 |
VGA (D-Sub) ports quantity |
1 |
Weight & dimensions
Weight with stand |
7300 g |
Depth |
44.1 mm |
Weight |
5800 g |
Width |
464.8 mm |
Height |
285.4 mm |
Multimedia
Number of speakers |
2 |
RMS rated power |
4 W |
TV tuner integrated |
N |
Built-in camera |
N |
Built-in speaker(s) |
Y |
Power
Power consumption (typical) |
45 W |
Power consumption (standby) |
1 W |
Ergonomics
VESA mounting |
Y |
Height adjustment |
N |
Cable lock slot |
Kensington |
VESA mounting interfaces |
75 x 75 mm |
On Screen Display (OSD) |
Y |
Operational conditions
Operating relative humidity (H-H) |
10 - 85% |
Additionally
Display scan frequency (horizontal) |
30 - 80 kHz |
Display number of colors |
16.78 million colours |
Colour of product |
Black |
Display diagonal |
47 cm |
On/Off switch |
Y |
Energy efficiency compliance |
Unspecified |
Operating temperature range (T-T) |
5 - 40 °C |

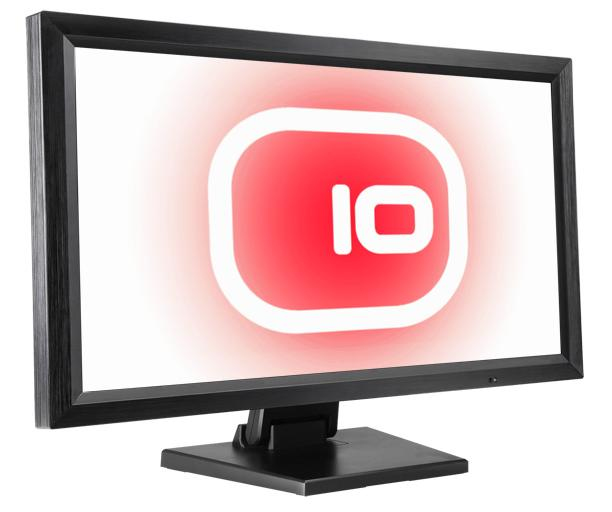

C185k, 46.99 cm (18.5 ") , 1366 x 768, 5ms, 2x 2W, VGA, HDMI, Composite BNC in/out, CVBS
The new C185K offers an 18.5” screen capable of crystal clear image reproduction due to the advanced 3D Digital Comb filter. The multiple interfaces, including BNC In/Out, HDMI, CVBS and VGA enables output from a variety of sources. Wall/stand mounting is easy with VESA 100mm compatibility although an optional height adjustable stand is available. A sheet metal rear cabinet ensures the C185K is built for the tough environment of top level security installations.
