Networking
| Supports ISDN connection |
N |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Full duplex |
Y |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
N |
| DHCP server |
Y |
Mobile networking
| 3G standards |
CDMA, HSDPA, UMTS |
| 3G |
Y |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
150 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Security
| Firewall |
Y |
| MAC address filtering |
Y |
Other features
| Mobile network connection |
Y |
| xDSL connection |
N |
| Internal memory |
16 MB |
| Flash memory |
4 MB |
| Rack mounting |
N |
| Input voltage |
5 V |
| Number of users |
253 user(s) |
| Input current |
2 A |
| USB ports quantity |
1 |
Antenna
| Antenna gain level (max) |
2 dBi |
| Antenna connector type |
RP-SMA |
| Antennas quantity |
1 |
Additionally
| Ethernet LAN connection |
Y |
| Filtering |
MAC/IP Filter and URL Blocking |
| Ethernet LAN (RJ-45) ports quantity |
1 |
10/100Mbps Ethernet, USB, 3G/3.5G
- Shares 3G connection or xDSL/Cable connection with network users
- Supports xDSL or cable broadband backup when 3G is not available
- Provides USB 2.0 port for UMTS/HSDPA/CDMA mobile Internet service
- Includes 16-languages EZmax setup wizard for Internet connection, wireless security and firmware upgrade
- Complies with IEEE 802.11b/g and compatible with IEEE802.11n wireless standards
Share your 3G, 3.5G or xDSL Internet Connection

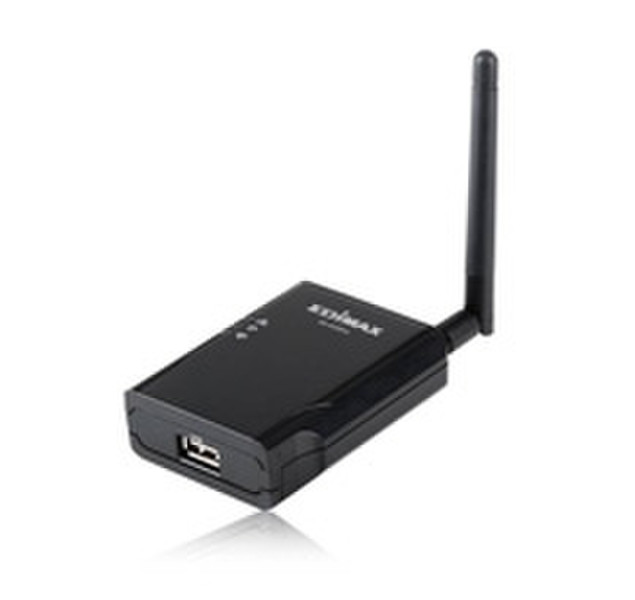

The Edimax 3G-6200nL is a compact and powerful wireless 3G router that supports connection speeds of up to 7.2Mbps. Connect either a 3G or 3.5G USB modem card* to this miniture broadband router and all your network users (wired and wireless) can share the Internet connection. The Edimax 3G-6200nL also has a built-in Ethernet WAN port for a cable modem or xDSL line, so when your 3G/3.5G Internet connection is not available, the Edimax 3G-6200nL will automatically switch to your wired Internet connection.
Compact with Multi-language User Interface
The Edimax 3G-6200nL is currently the world's smallest wireless 3G router! Configuration is made extra easy as the built-in 14-language graphical user interface guides you from start to finish.
Impressive Data Transmission Rate via IEEE802.11n
The Edimax 3G-6200nL complies with wireless IEEE 802.11b/g, and is compatible with the IEEE 802.11n standard. The Edimax 3G-6200nL wireless data transmission rate can reach up to 150Mbps when fine-tuned to using the wireless 802.11n technology – a coverage 3 times greater than a standard 802.11g/b router.
Easy setup with EZMax Multi-language wizard
In addition to the built-in user interface, a unique multi-language setup wizard is included on the installation CD. You can setup the router to the Internet within minutes using the easy-to-follow animated steps.
One-Click Hardware WPS (Wi-Fi Protected Setup)
The Edimax 3G-6200nL has a One-Click WPS (Wi-Fi Protected Setup) button to help you setup and activate a secure wireless network in a snap.
