Networking
| Supports ISDN connection |
N |
Security
| Firewall security |
NAT/NATP, DoS, DMZ |
| VPN support |
VPN Pass Throught (IPSec/PPTP) |
Other features
| Downstream data rate |
24 Mbit/s |
| Upstream data rate |
2 Mbit/s |
| Maximum data transfer rate |
0.1 Gbit/s |
| Supported WAN type |
PPPoE/PPPoA |
| xDSL connection |
Y |
| Internal memory |
8 MB |
| Flash memory |
2 MB |
| Number of users |
253 user(s) |
| Data transfer rate |
54 Mbit/s |
DSL features
| DSL specification |
G.992.1 G.992.3, G.992.4, G.992.5 |
| ADSL |
Y |
Protocols
| DHCP client |
Y |
| DHCP server |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
4 |

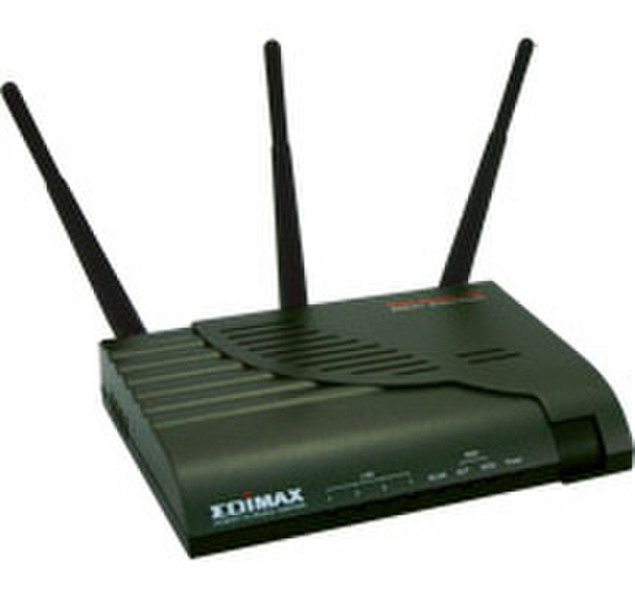

AR-7064Mg+ 4 Ports MIMO XR 802.11g/b Wireless ADSL2+ Router
Key Feature
-Share your ADSL2+ Internet access on your networks up to 253 user.
-ANSI T1.413 Issue 2, ITU-T G.992.1(G.dmt) and G.992.2 (G.lite) compliant for Annex A.
-High downstream and upstream data rates up to 24Mbps and 2Mbps.
-Configuration and management operated via WWW browser with password protected access.
-WAN and LAN side connection statistics, DMZ and Virtual Server function.
-Operating modes include routing, bridge, static IP, PPPoE, PPPoA etc.
-All Ethernet ports supports Auto-Crossover (MDI/MDI-X).
Wireless
Support IEEE-802.11g MIMO XR Wireless data rate
Compatibility with IEEE 802.11g and 802.11b (2.4GHz) standards
Support WEP 64bit, WEP 128bit and WPA-PSK wireless encryption
ADSL
Compatible with all leading DSLAMs, Supports DMT modulation and demodulation, Support ITU-T G.992.1 G.992.3, G.992.4, G.992.5 Annex A & T1.413 Issue 2 for Annex A
G.992.1 (G.dmt) : Downstream and upstream data rates up to 8Mbps and 1Mbps
G.992.2 (G.Lite) : Downstream and upstream data rates up to 1.5Mbps and 512Kbps
G.992.3 / G.992.4 (ADSL2) : Downstream and upstream data rates up to 12Mbps and 1Mbps
G.992.5 (ADSL2+) : Downstream and upstream data rates up to 24Mbps and 2Mbps
ATM
WAN Mode Support : PPP Over ATM (RFC2364) and PPP Over Ethernet (RFC2516)
LAN Mode Support : Routed / Bridge Ethernet Over ATM (RFC-2684)
Classical Internet Protocol Over ATM (RFC-1577), Support ATM SAR, ATM AAL5,ATM Forum UNI3.1 / 4.0 PVC, Support 8 ATM VCs
Router
DHCP Server and Client / NAPT (Network Address and Port Translation) / NAT (Network Address Translation) / ICMP (Internet Control Message Protocol) / IGMP (Internet Group Management Protocol) / DDNS (Dynamic Domain Name Service)
DSLAM Interoperable with Alcatel, Cisco, Copper Mountain, ECI, Texas Instruments, Pairgain, Samsung, Lucent, Globespan, Efficient, ADI, Centillium, Newbridge, Nortel, Compaq, Conexant, Motorola, 3 Com, NLC, Anymedia, Nokia, Intel…
