Networking
| Supports ISDN connection |
N |
Security
| Firewall security |
NAT/NATP, SPI, DoS, DMZ |
| VPN support |
VPN Pass Throught (IPSec/PPTP), L2TP |
| MAC address filtering |
Y |
Other features
| Downstream data rate |
24 Mbit/s |
| Upstream data rate |
2 Mbit/s |
| Maximum data transfer rate |
0.1 Gbit/s |
| Supported WAN type |
PPPoE/Static IP/Dynamic IP/PPTP/DHCP/L2TP |
| xDSL connection |
Y |
| Internal memory |
8 MB |
| Flash memory |
2 MB |
| Number of users |
253 user(s) |
| Data transfer rate |
54 Mbit/s |
DSL features
| DSL specification |
G.992.1 G.992.3, G.992.4, G.992.5 |
| ADSL |
Y |
Antenna
| Antenna connector type |
RP-SMA |
Protocols
| DHCP client |
Y |
| DHCP server |
Y |
Additionally
| Filtering |
IP |
| Ethernet LAN (RJ-45) ports quantity |
4 |

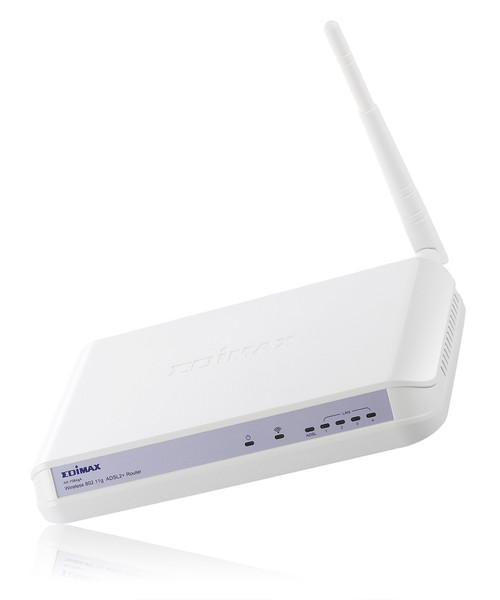

AR-7084gA Wireless 802.11b/g ADSL2+ Modem Router with 4 ports switch
AR-7084gA
AR-7084gA supports 8 Public IP Address mapping so you can set up multi servers (Web server, Mail Server and IP camera...) inside your network for Internet users to access.
You can restrict users to access the services like Web, Telnet, Ping, FTP and SNMP. Also, you can also block some IP addresses to access Internet thought AR-7084gA to increase the security.
AR-7084gA provides Firewell to protect you from the following Internet attacks, SYN Flooding, Ping of Death, Teardrop and Land Attack.
Key Feature
Shares ADSL/2/2+ Internet connection upto 253 network users
ANSI T1.413 Issue 2, ITU-T G.992.1(G.dmt) and G.992.2 (G.lite) compliant for Annex A
Operating modes include routing, bridge, static IP, PPPoE, PPPoA etc
Supports IEEE 802.11b/g access point with WEP/WPA encryption
High downstream and upstream data rates up to 24Mbps and 2Mbps
Virtual Server/DMZ/Port Forwarding
IP Address Mapping for 8 Public IP Addresses
Advanced Firewall and Access Control
ADSL Features
Compatible with all leading DSLAMs, Supports DMT modulation and demodulation, Support ITU-T G.992.1 G.992.3, G.992.4, G.992.5 Annex A & T1.413 Issue 2 for Annex A
G.992.1 (G.dmt) : Downstream and upstream data rates up to 8Mbps and 1Mbps
G.992.2 (G.Lite) : Downstream and upstream data rates up to 1.5Mbps and 512Kbps
G.992.3 / G.992.4 (ADSL2) : Downstream and upstream data rates up to 12Mbps and 1Mbps
G.992.5 (ADSL2+) : Downstream and upstream data rates up to 24Mbps and 2Mbps
ATM Features
WAN Mode Support : PPP Over ATM (RFC2364) and PPP Over Ethernet (RFC2516)
LAN Mode Support : Routed / Bridge Ethernet Over ATM (RFC-2684)
Classical Internet Protocol Over ATM (RFC-1577), Support ATM SAR, ATM AAL5,ATM Forum UNI3.1 / 4.0 PVC, Support 8 ATM VCs
Router Features
DHCP Server and Client / NAPT (Network Address and Port Translation) / NAT (Network Address Translation) / ICMP (Internet Control Message Protocol) / IGMP (Internet Group Management Protocol) / DDNS (Dynamic Domain Name Service)
DSLAM Compatibility
Interoperable with Alcatel, Cisco, Copper Mountain, ECI, Texas Instruments, Pairgain, Samsung, Lucent, Globespan, Efficient, ADI, Centillium, Newbridge, Nortel, Compaq, Conexant, Motorola, 3 Com, NLC, Anymedia, Nokia, Intel…
