Networking
| Supports ISDN connection |
N |
Security
| Firewall security |
NAT/NATP, SPI, DoS, DMZ |
| VPN support |
VPN Pass Throught (IPSec/PPTP), L2TP |
| MAC address filtering |
Y |
Other features
| Downstream data rate |
24 Mbit/s |
| Upstream data rate |
1 Mbit/s |
| Maximum data transfer rate |
0.1 Gbit/s |
| Supported WAN type |
PPPoE/Static IP/Dynamic IP/PPTP/DHCP/L2TP |
| xDSL connection |
Y |
| Internal memory |
8 MB |
| Flash memory |
2 MB |
| Number of users |
253 user(s) |
| Data transfer rate |
54 Mbit/s |
DSL features
| DSL specification |
G.992.1 G.992.3, G.992.4, G.992.5 G.992.5 (ADSL2+) Annex B |
| ADSL |
Y |
Antenna
| Antenna connector type |
RP-SMA |
Protocols
| DHCP client |
Y |
| DHCP server |
Y |
Additionally
| Filtering |
IP |
| Ethernet LAN (RJ-45) ports quantity |
4 |

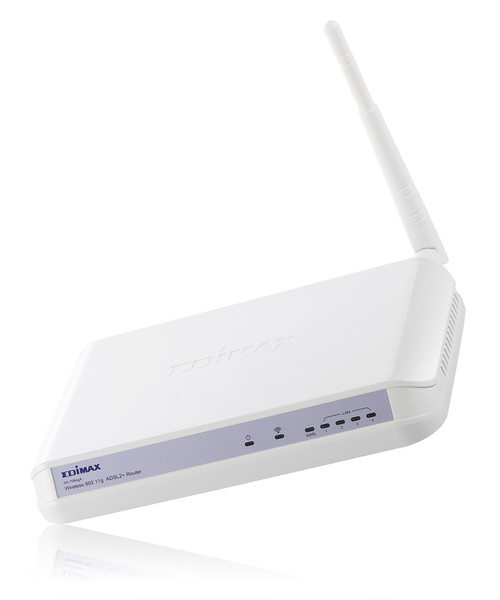

Wireless 802.11b/g ADSL2+ Modem Router with 4 ports switch (Annex B)
- Full Rate ADSL/2/2+ connection
- Supports 802.11b/g Wireless Access Point
- Support IP sharing for upto 253 wired / wireless users
- Operating modes include routing, bridge, static IP, PPPoE, PPPoA, dynamic IP
- Advanced Firewall and Access Control
- Supports 8 Public IP Addresses
- Web-Base Configuration
- Firmware upgradable
- Supports up to 24 wireless clients
Built-in High Performance ADSL2/2+ Modem
The AR-7084gA/B is wireless ADSL router runs at speeds up to 24Mbps downstream and 1Mbps upstream, providing higher data rates than traditional ADSL systems. Also, it is backward compatible with existing ADSL services and interoperable with legacy equipment. The ADSL router supports ADSL standard: G.992.1 (G.dmt), G.992.2 (G.lite), G.992.3 (ADSL2), G.992.4 (splitter less ADSL2), G.992.5 (ADSL2+) for Annex A, B. (Annex A and B are supported in different H/W platform)
Complies with wireless 802.11b/g standards
The AR-7084gA/B is built in with wireless 802.11b/g access point. It allows wireless 802.11b/g client devices access the Intranet and Internet. All wireless users can surf Internet freely within the coverage.
Easy Setup with EZMax Multi-language Installation CD
A unique 16-languages setup wizard is included in the installation CD for you to setup Internet connection, router password, ESSID, wireless security and firmware upgrade. You can setup the router connecting to the Internet within minutes by following the simple animated steps.
Virtual Server / DMZ
The ADSL router supports 8 Public IP Address mapping so you can set up multi servers (Web server, Mail Server and IP camera...) inside your network for Internet users to access.
Firewall
AR-7084gA provides Firewall to protect you from the following Internet attacks, SYN Flooding, Ping of Death, Teardrop and Land Attack. You can restrict users to access the services like Web, Telnet, Ping, FTP and SNMP. Also, you can also block some IP addresses to access Internet thought AR-7084gA/B to increase the security.
Web Configuration
The router can be configured through the friendly Web interface with a Web browser from Internet or Intranet.
IP SHARING
The NAT/NAPT function lets you share the broadband connection to all the network users (up to 253 users).
