Networking
| Supports ISDN connection |
N |
| Management protocols |
SNMP |
Security
| Firewall security |
SPI Anti-Dos |
| MAC address filtering |
Y |
Management features
| Universal Plug and Play (UPnP) |
Y |
DSL features
| DSL specification |
G.992.1 (G.dmt), G.992.2 (G.lite), G.992.3 (ADSL2), G.992.4 (splitterless ADSL2), G.992.5 (ADSL2+) for Annex A, B |
| ADSL |
Y |
Other features
| xDSL connection |
Y |
| Internal memory |
16 MB |
| Flash memory |
4 MB |
Antenna
| Antenna gain level (max) |
3 dBi |
Protocols
| DHCP client |
Y |
| DHCP server |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
4 |

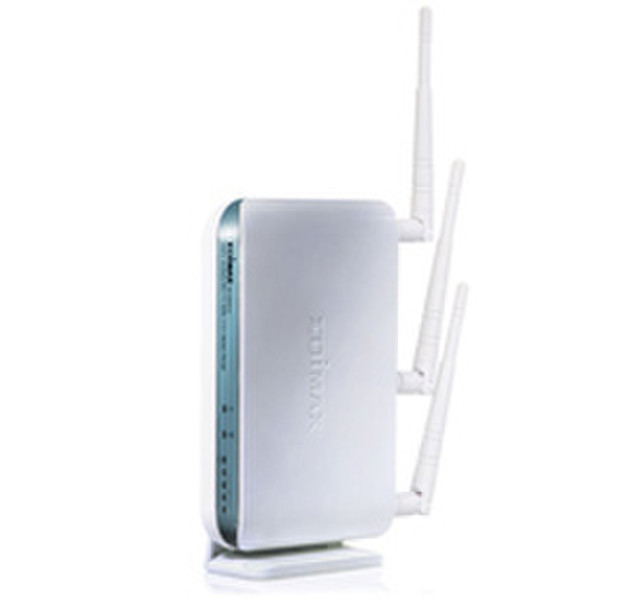

AR-7265WnA, Wireless IEEE802.11 b/g/n ADSL2/2+ Modem Router
-Complies with ADSL2/2+ standards with downstream and upstream data rate up to 24Mbps and 1Mbps
-Complies with wireless 802.11n and 802.11b/g standards
-Increases the wireless speed up to 12 times faster and extends the coverage 6 time further *
-Includes EZMax multi-languages setup wizard for Internet connection, wireless settings and firmware upgrade
-Supports WPS configuration button
-Supports WMM, UPnP, SNMP, DHCP, IP/MAC filter, DMZ and virtual server
Wireless-N ADSL2/2+ Modem Router
Edimax AR-7265WnA is a high performance router that provides a full rate of ADSL2+ standard with the superb reliability and a cost-effective solution for home and small business. This modem router complies with 802.11n, the next generation wireless standard. With the advanced MIMO technology, it provides up to 12 times better data transmission rate (up to 300Mbps) and 6 times better coverage than a standard 802.11g/b router.
Wi-Fi Protected Setup (WPS)
Press the WPS button to activate the wireless protection. One-Click WPS button helps you to setup a secure wireless network in a minute .
Built-in ADSL2/2+ Modem and lP Sharing
You can share the ADSL broadband connection to all wired and wireless network users (up to 253 users) whilst benefit from any ADSL, ADSL2 or ADSL2+ Internet connection, with up to 24Mbps Downstream and 1Mbps Upstream.
Multi-languages Setup Wizard *
A unique Multi-languages Setup Wizard is provided in the product CD. You can select your mother-tongue and follow the simple steps to connect to the Internet .
Virtual Server and DMZ
For application that demand open port such as network gaming and web server, the Virtual Server and DMZ functions will provide the ideal solution.
Flexibility with Detachable Antenna
AR-7265WnA incorporated with three detachable 3dBi RP-SMA antennas, meeting the expectation to change it to high-gain antennas. Use in combination with Edimax EA-MARS( Antenna Re-locator ) will eliminate dead spots whilst bringing robust coverage.
* The EZMax Setup CD Wizard only supports Edimax wireless router.
* Maximum performance will vary depending on network conditions and environmental factor
