Networking
| Supports ISDN connection |
N |
Security
| Firewall security |
NAT, NAPT |
| VPN support |
IPSec\nPPTP |
| MAC address filtering |
Y |
Other features
| Downstream data rate |
1 Mbit/s |
| Upstream data rate |
24 Mbit/s |
| Maximum data transfer rate |
0.3 Gbit/s |
| Non-operating relative humidity (non-condensing) |
10 - 90% |
| xDSL connection |
Y |
| Interface |
LAN, WLAN |
| Internal memory |
16 MB |
| Flash memory |
2 MB |
| Input voltage |
12 V |
| Number of users |
253 user(s) |
| Input current |
1 A |
| Frequency range |
2400 - 2480 MHz |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
100 Mbit/s |
Antenna
| Antenna gain level (max) |
3 dBi |
| Antennas quantity |
2 |
Ports & interfaces
| RJ-11 ports quantity |
1 |
| DC-in jack |
Y |
Additionally
| Output power |
11n: 13 ±1dBm, 11g: 15 ±1dBm, 11b: 16 ±1dBm |
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

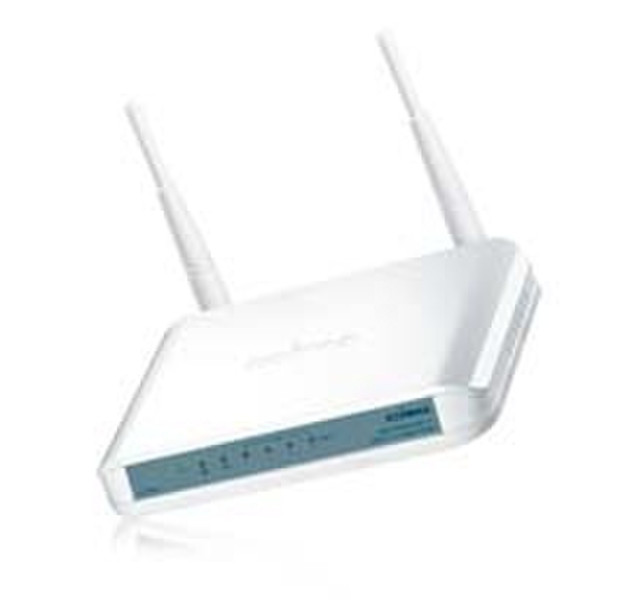

Edimax AR-7266WNA Modem-router ADSL 2+ wireless n300 11n 2T2R / 4-port switch 2da Annex A
300Mbps Wireless 802.11b/g/n ADSL2/2+ Modem Router
Edimax AR-7266WnA/B is a high performance router that provides a full rate of ADSL2+ standard with the superb reliability and a cost-effective solution for home and small business. This modem router complies with 802.11n, the next generation wireless standard. With the advanced MIMO technology, it provides up to 9 times better data transmission rate (up to 300Mbps) and 5 times better coverage than a standard 802.11g/b router.
Wi-Fi Protected Setup (WPS)
Press the WPS button to activate the wireless protection. One-Click WPS button helps you to setup a secure wireless network in a minute .
Built-in ADSL2/2+ Modem and lP Sharing
You can share the ADSL broadband connection to all wired and wireless network users (up to 253 users) whilst benefit from any ADSL, ADSL2 or ADSL2+ Internet connection, with up to 24Mbps Downstream and 1Mbps Upstream.
Multi-languages Setup Wizard
A unique Multi-languages Setup Wizard is provided in the product CD. You can select your mother-tongue and follow the simple steps to setup Internet connection, password, SSID, wireless security and firmware upgrade.
Virtual Server and DMZ
For application that demand open port such as network gaming and web server, the Virtual Server and DMZ functions will provide the ideal solution.
Flexibility with Detachable Antenna
AR-7266WnA incorporated with two detachable 3dBi RP-SMA antennas, meeting the expectation to change it to high-gain antennas. Use in combination with Edimax EA-MARS( Antenna Re-locator ) will eliminate dead spots whilst bringing robust coverage.
