Networking
| Supports ISDN connection |
Y |
Security
| Firewall security |
NAT, NAPT IP |
| VPN support |
IPSec\nPPTP |
| MAC address filtering |
Y |
Other features
| Downstream data rate |
24 Mbit/s |
| Upstream data rate |
1 Mbit/s |
| Maximum data transfer rate |
0.15 Gbit/s |
| Non-operating relative humidity (non-condensing) |
10 - 90% |
| xDSL connection |
Y |
| Interface |
LAN, WLAN |
| Internal memory |
16 MB |
| Flash memory |
4 MB |
| Input voltage |
12 V |
| Number of users |
253 user(s) |
| Input current |
0.8 A |
| USB ports quantity |
1 |
| Frequency range |
2400 - 2484 MHz |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
HTTP/TFTP, SSH |
DSL features
| DSL specification |
ADSL 2+ Annex B |
| ADSL |
Y |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Full duplex |
Y |
| Ethernet LAN data rates |
100 Mbit/s |
Wireless LAN features
| WLAN data transfer rate (max) |
150 Mbit/s |
| Modulation |
BPSK, CCK, DBPSK, DQPSK, DSSS, QPSK |
Antenna
| Antenna gain level (max) |
3 dBi |
| Antennas quantity |
1 |
Ports & interfaces
| RJ-11 ports quantity |
1 |
| DC-in jack |
Y |
Additionally
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

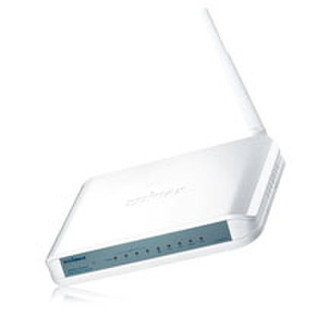

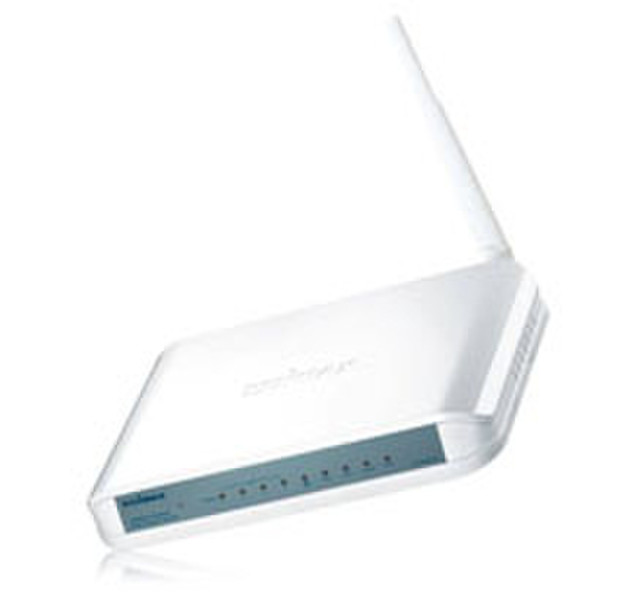

AR-7284WnB, ADSL2/2+ Modem Router, 150Mbps, 802.11b/g/n, WEP, WPA2
150Mbps Wireless ADSL2/2+ Modem Router
Edimax AR-7284WnA/B is a high performance router that provides a full rate of ADSL2+ standard with the superb reliability and a cost-effective solution for home and small business. This modem router compatible with 802.11n, the next generation wireless standard. With the advanced MIMO technology, it provides up to 6 times better data transmission rate (up to 150Mbps) and 3 times better coverage than a standard 802.11g/b router.
Wi-Fi Protected Setup (WPS)
Activate the wireless protection and connection by pressing the WPS button. One-Click WPS button helps you to setup a secure wireless network in a minute.
Built-in ADSL2/2+ Modem and lP Sharing
You can share the ADSL broadband connection to all wired and wireless network clients (up to 253 clients) whilst benefit from any ADSL, ADSL2 or ADSL2+ Internet connection, with up to 24Mbps Downstream speed and 1Mbps Upstream speed.
Multi-languages Setup Wizard
A unique Multi-languages Setup Wizard is provided in the bundled CD. You can select your own language and follow a few simple steps to setup the Internet connection, router's password, SSID, wireless security and firmware upgrade.
Virtual Server and DMZ
For applications that require open port(s) such as online games, VoIP phones, web server and etc, the built-in Virtual Server and DMZ functions are featured.
Supports TR-069 for Remote Management
The AR-7284WnA/B also supports TR-069 which is a protocol specifically defines a common method for CPE devices to communicate with a server. ISP can update the firmware and other settings automatically.
