Wireless LAN features
| Modulation |
QPSK, DSSS, DQPSK, DBPSK, CCK, BPSK, 64-QAM, 16-QAM |
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| WLAN data transfer rate (max) |
300 Mbit/s |
Antenna
| Detachable antenna(s) |
N |
| Antenna gain level (max) |
5 dBi |
| Antenna type |
External |
| Antennas quantity |
2 |
Ports & interfaces
| RJ-11 ports quantity |
1 |
| DC-in jack |
Y |
Other features
| Frequency range |
2.4 - 2.4835 GHz |
| Input current |
0.5 A |
| Frequency band |
2.4 GHz |
| xDSL connection |
Y |
| Flash memory |
2 MB |
| Internal modem |
Y |
| Internal memory |
8 MB |
| Bandwidth (first) |
2.4 GHz |
| Mobile network connection |
N |
Management features
| Web-based management |
Y |
| Reset button |
Y |
| Quality of Service (QoS) support |
Y |
| Universal Plug and Play (UPnP) |
Y |
Security
| MAC address filtering |
Y |
| URL filtering |
Y |
| VPN support |
TCP, IP, UDP, ARP, ICMP |
Ethernet LAN features
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Networking
| Management protocols |
IETF RFC 0919, IETF RFC 0922, IETF RFC 2644 |
| Routing protocols |
RIP-2, RIP-1 |
DSL features
| ADSL2 |
Y |
| DSL specification |
ANSI T1.413i2 |
Additionally
| On/Off switch |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Filtering |
IP / MAC |
802.1b/g/n, 300 Mbps, ADSL, LAN 1-4, WLAN, WPS, 2x5dBi

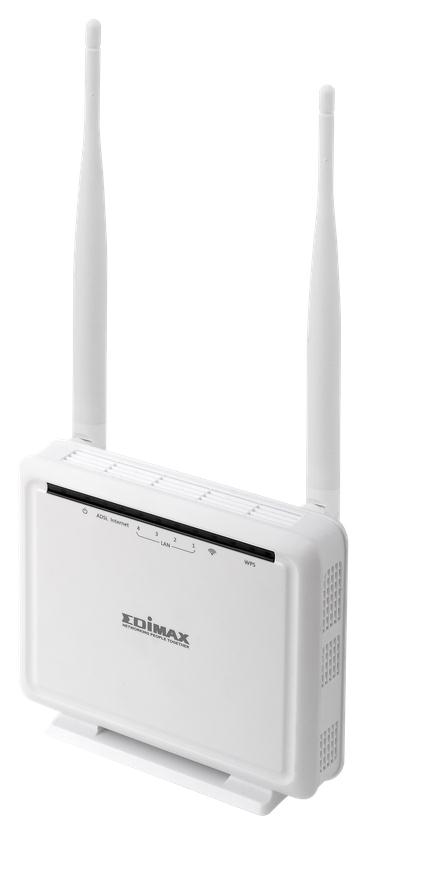

<b>300Mbps Wireless ADSL2/2+ Modem Router</b>
The Edimax AR-7286WnA/B is a high performance router that provides full ADSL2+ capability and superb reliability as a cost-effective networking solution for homes and small businesses. Compatible with the wireless standard 802.11n, and with advanced MIMO technology, the AR-7286WnA/B provides up to six times better data transmission rates (up to 300Mbps) and five times better coverage than a standard 802.11g/b router.
<b>All-in-One Device</b>
The AR-7286WnA/B is a wireless N router with a built-in ADSL2/ADSL2+ modem combining a high-performance router, modem, and a switch into a single device. Save desk space, the hassle of extra cords & cables and the cost of leasing a router from your DSL service provider.
<b>Powerful and Wide Coverage</b>
Featuring two 5dBi high-gain antennas, the AR-7286WnA/B boosts your signal to ensure extended wireless networking range.
<b>Four-Networks-in-One</b>
The AR-7286WnA/B supports multiple SSIDs for up to four wireless networks.
<b>Lightning Protection</b>
Protected from lightning strikes to help your device avoid the damage of a tough thunderstorm.
<b>Supports TR-069 for Remote Management</b>
The AR-7286WnA/B also supports TR-069 which is a protocol to define a common method for CPE devices to communicate with a server.
<b>Wi-Fi Protected Setup (WPS)</b>
Wi-Fi Protected Setup is a quick and convenient method of establishing wireless connections between compatible devices. Set up a wireless network in less than a minute with just a couple of clicks of a button or easily add new Wi-Fi devices to an existing network.
<b>Easy Setup Wizard with Built-in ISP Selector</b>
Setup the ADSL modem router using the unique and convenient multi-language setup wizard provided on the included CD-ROM or available through a web browser. Select your language and follow a few simple steps to setup the router and configure the Internet connection, password, SSID and wireless security. Additionally, the setup wizard includes a built-in ISP selector to configure your ISP settings automatically.
