Other features
| xDSL connection |
N |
| Maximum data transfer rate |
0.054 Gbit/s |
| Interface |
1 RJ-45 WAN, 4 RJ-45 Ethernet LAN |
Networking
| Supports ISDN connection |
N |
Security
| VPN support |
IPSec/PPTP |
| MAC address filtering |
Y |
Antenna
| Antenna gain level (max) |
3 dBi |
Protocols
| Supported network protocols |
PPPoE/Static, IP/DHCP/L2TP/PPTP |
Additionally
| Output power |
11g: 16 ±1dBm, 11b: 18 ±1dBm |
| Filtering |
NAT/NAPT |
| Ethernet LAN (RJ-45) ports quantity |
4 |

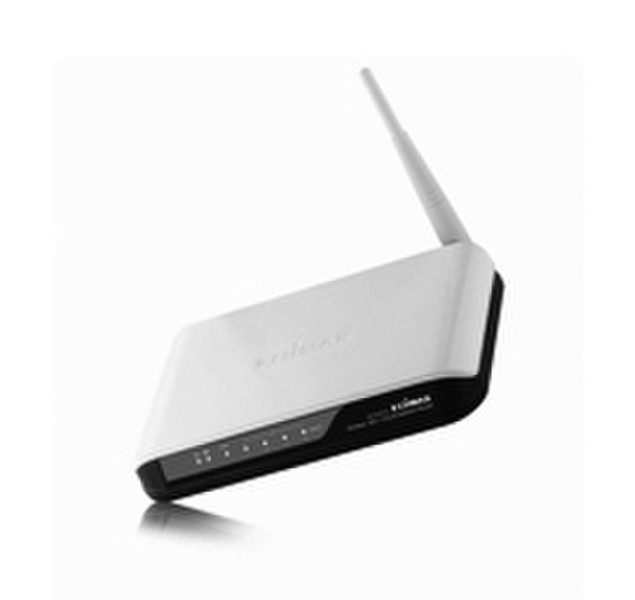

BR 6204WLg, 1 WAN port & 4 Fast Ethernet LAN ports, Client / WDS / AP+WDS
Internet Connection Sharing
Integrated 4-port Ethernet switch and wireless 802.11b/g standards, BR-6204WLg is able to maximize Cable or xDSL Internet connection. With the built-in DHCP server and NAT function, it allows up to 250 wired or wireless devices share the Internet connection at the same time.
Wireless On/Off Switch
The push button on the back panel enables you to switch on/off wireless connection easily. When there is no wireless device in the environment, you can press the button to stop wireless signal. It protects you from unauthorized wireless connection and saves energy.
EZmax Multi-languages Setup Wizard
A unique 16-language setup wizard is included in the CD ROM. You can select your native language and follow the simple steps to setup Internet connection, password, SSID, wireless security and firmware upgrade.
Port Forwarding and DMZ
BR-6204WLg supports port forwarding and DMZ. You can enjoy the Internet game play, setup a web server and execute other applications required ports opening.
Wireless Turbo Mode
BR-6204WLg supports wireless turbo mode to increase the wireless performance 35% than the normal wireless 802.11b/g connection.
