Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Wi-Fi band |
Single-band (2.4 GHz) |
Security
| Filtering |
Y |
| URL filtering |
Y |
| Firewall |
Y |
| DoS attack prevention |
Y |
| Firewall security |
SPI, DoS |
| IP address filtering |
Y |
| MAC address filtering |
Y |
WAN connection
| SIM card slot |
N |
| DSL WAN |
N |
| 3G/4G USB modem compatibility |
N |
| Ethernet WAN |
Y |
Protocols
| DMZ support |
Y |
| DHCP server |
Y |
| DHCP client |
Y |
Management features
| Universal Plug and Play (UPnP) |
Y |
| WPS push button |
Y |
| Web-based management |
Y |
| Reset button |
Y |
| Quality of Service (QoS) support |
Y |
Networking
| Network address translation (NAT) |
Y |
| Guest access |
Y |
| Receiver sensitivity |
11b(11Mbps): ‐85±2dBm\n11g (54Mbps): ‐68±2dBm\n11n(20MHz, MCS7): ‐68±2dBm\n11n(40MHz, MCS7): ‐68±2dBm |
Antenna
| Antennas quantity |
2 |
| Transmit power |
18 - 20 dBmW |
| Antenna type |
External |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
100 Mbit/s |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
5 |
| Ethernet LAN connection |
Y |
5x RJ-45, WPS, DDNS, DHCP, VPN, 5 V DC, 145 x 88 x 24 mm, 140 g

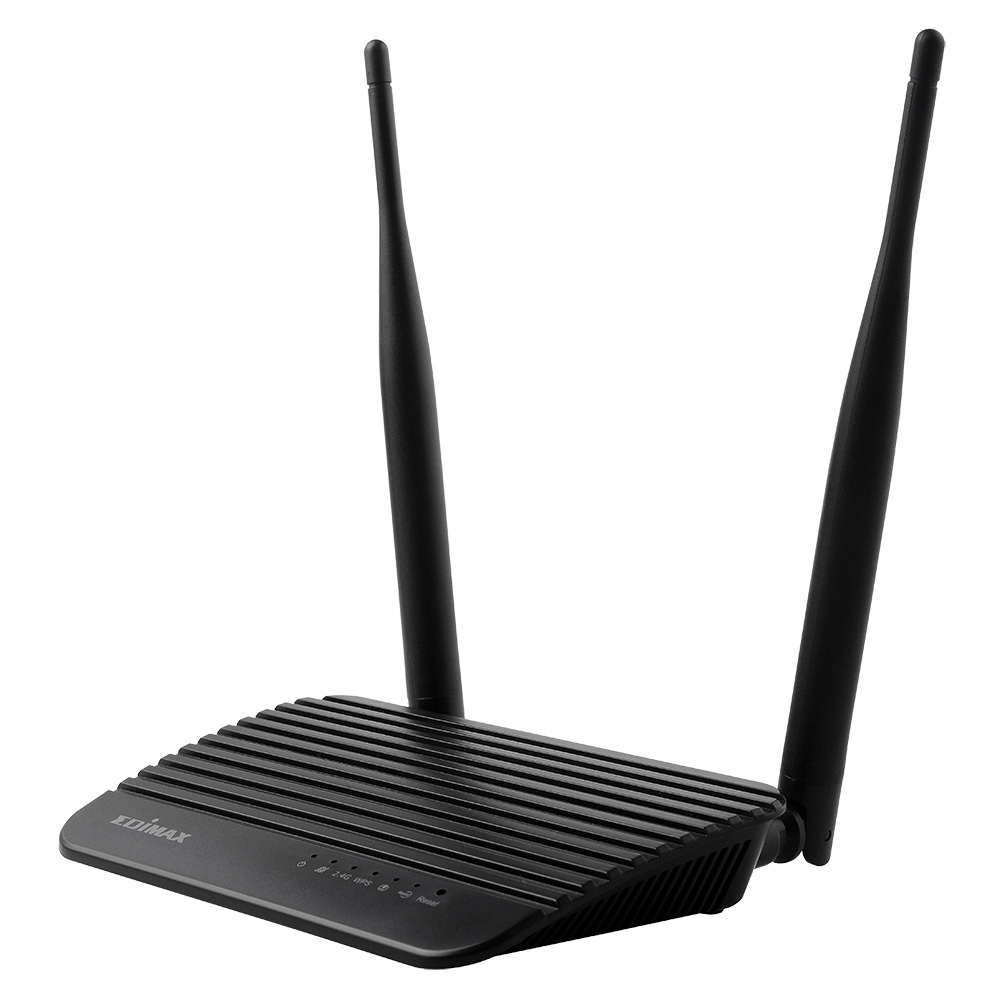

The BR-6428nS V4 is a 300Mbps high-speed 5-in1 multi-function Wi-Fi solution which supports IEEE 802.11b/g/n standards and provides significantly improved coverage with the High-gain antenna. Operating as a router, access point, range extender, Wi-Fi Bridge or WISP, the BR-6428nS V4’s flexibility meets the demands of any networking applications. The smart iQ Setup wizard makes setup and installation as easy as a few clicks. Impressive performance and a competitive price make the BR-6428nS V4 a cost-effective solution for home or small office environments.
<b>5-in-1 Wi-Fi Router, Access Point, Range Extender, Wi-Fi Bridge and WISP</b>
The BR-6428nS V4 can work as router, access point, range extender, Wi-Fi Bridge or WISP. Just configure the mode you need for your network environment using the smart iQ Setup wizard.
<b>Smart iQ Setup</b>
Features iQ Setup for smart, automatic and quick installation with no CD required.
<b>Edimax’s Revolutionary iQoS</b>
iQoS is Edimax’s solution for a quicker, easier, and more effective way to manage Internet bandwidth. While Quality of Service (QoS) functionality is a common feature in routers across the market, typically only advanced users have the knowledge required to set up the complex parameters. Edimax though has redesigned QoS with user-friendliness and accessibility in mind. A simple and intuitive user interface allows users to arrange bandwidth priority settings in just a few clicks. With iQoS, you can enjoy gaming, video streaming, VoIP applications and BT clients at the same time without the usual nightmare of lag and interruptions. An original, efficient and effective means of managing your Internet bandwidth.
<b>Multi-SSID & VLAN Support</b>
Multi-SSID enables users to configure up to five separate SSIDs in order to group and manage users according to your requirements.
<b>Guest Network</b>
Supports a guest network to provide connectivity while isolating guests from your primary network.
