Security
| Firewall security |
SPI Anti-Dos |
| VPN support |
VPN Pass Through (IPSec/PPTP) |
| NAT functionality |
NAT/NAPT IP |
| MAC address filtering |
Y |
Ethernet LAN features
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Networking
| Receiver sensitivity |
11n (40MHz): -68dBm, 11n (20MHz): -71dBm, 11g: -74dBm, 11b: -87dBm |
Other features
| Supported WAN type |
PPPoE/Static IP/PPTP/Dynamic IP/L2TP |
| Management platform |
EZView |
| xDSL connection |
N |
| Interface |
RJ-45 |
| Internal memory |
16 MB |
| Flash memory |
4 MB |
| Bandwidth |
2.4 GHz |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Antenna
| Antenna gain level (max) |
3 dBi |
| Antennas quantity |
3 |
Protocols
| DHCP client |
Y |
| DHCP server |
Y |
Additionally
| Output power |
11n: 16±1dBm, 11g: 16±1dBm, 11b:18±1dBm |
| Ethernet LAN connection |
Y |
| Filtering |
URL |
| Ethernet LAN (RJ-45) ports quantity |
4 |

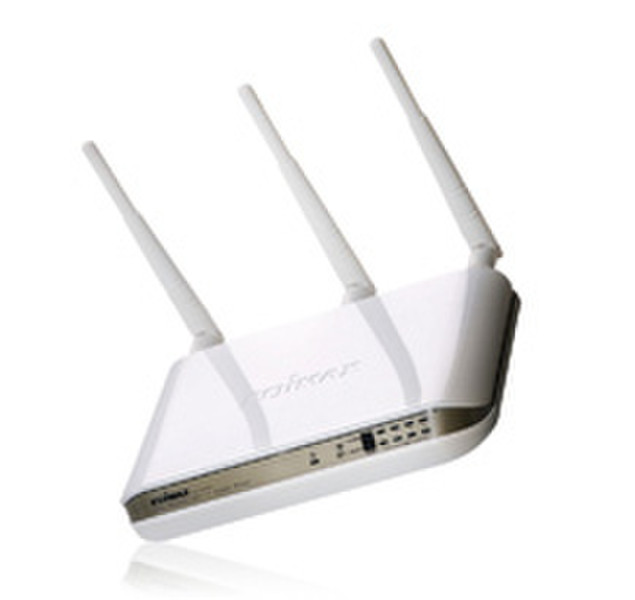

BR-6574n 300 Mbps Wireless Gigabit Broadband Router
Edimax BR-6574n is a high performance broadband router which complies with gigabit Ethernet ports and wireless 11N solution. With advanced wireless11N MIMO technology, it’s wireless data transmission rate can be 12 times better (up to 300Mbps) and 6 times better coverage than a
standard 802.11g/b router.
BR-6574n supports Edimax EZView management system which allows you to manage your router locally or remotely. UPnP compatible devices are automatically detected and information about the device will be listed in the management interface of the router. EZMax is a unique Multi-language
Setup CD Wizard. You can setup the router to the Internet within minutes by following the simple animated steps.
The BR-6574n is a high cost-efficiency router for Small office / Home office users, all computers and network devices can share a single xDSL / cable modem internet connection at high speed.
- Complies with 2.4GHz IEEE802.11n and IEEE 802.11b/g standards
- Complies with IEEE802.3/802.3u/802.3ab 10/100/1000Mbps Ethernet standards
- Supports EZMax Multi-language Setup Wizard
- Supports EZView management
- Supports NAT/NAPT IP sharing
- WAN Protocols: PPPoE/Static IP/PPTP/DHCP/L2TP
- Supports advanced 2T3R MIMO technology to enhance the throughput and coverage range
- significantly
- High speed data rate – up to 300Mbps.
- Supports Virtual Server and DMZ
- Supports Wi-Fi Protected Setup ( WPS ) with reset button
- Supports 64/128-bit WEP encryption and WPA-PSK, WPA2-PSK security
- Supports WMM function to meet the multimedia transmission requirement
- Supports WDS and Universal Repeater mode
- Supports Special Applications (Port Triggers)
- Supports DDNS (DynDNS, TZO), and QoS
- Supports VPN pass through (IPSec/PPTP)
- Supports MAC/IP filtering and URL blocking
- Supports DHCP server and Anti-Dos firewall
- Web user interface (remote configuration)
- Firmware upgradeable
