Data transmission
| MAC address table |
14000 entries |
| Number of trunks |
7 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Console port |
RS-232 |
| Fast Ethernet (copper) ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
Performance
| Packet buffer memory |
0.512 MB |
Protocols
| Management protocols |
SNMP |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |

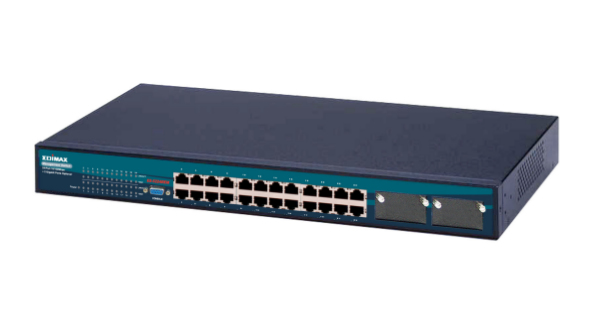

24 Port & 2 Expansion Slots Management Switch, 24 x RJ-45, 1 x RS-232 DB-9
Edimax's 24 ports smart Fast Ethernet Switch brings you the most powerful high speed network solutions. You can deploy Fast Ethernet switching wherever needed, from the backbone down to individual desktops. This switch satisfies the need for high-quality products at an affordable price - enabling even the most budge-conscious organizations to trade up to the next level of networking power.
This switch supports 10/100Mbps auto-negotiation on all ports, for seamless migration to 100Mbps connections without time-consuming trips to the wiring closet whenever end stations are upgraded to Fast Ethernet. All ports also automatically sense half or full duplex connections for high speed server or switch-to-switch configurations. The aggregate bandwidth of this switch can reach up to 2Gbps.
The switch is most suited to the following applications :
- It can be placed near the core of the network to eliminate bottlenecks and improve the overall network throughput.
- It can extend the span of a network that has the maximum allowed hubs connected in series.
- When used as a desktop connectivity device, it provides the highest possible performance for connecting users to your network.
The size of this 24 ports smart switch is 19" Rackmount. It is targeted at workgroup, departmental or backbone computing environments at medium to large business.
