Data transmission
| MAC address table |
4096 entries |
| Supported data transfer rates |
10/100/1000 Mbps |
| Maximum data transfer rate |
1 Gbit/s |
Networking
| Auto MDI/MDI-X |
N |
| 10G support |
N |
| Full duplex |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| DC-in jack |
Y |
Power
| Input voltage |
12 V |
| Input current |
1 A |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
8 Ports Gigabit Ethernet Switch
- Complies with the IEEE 802.3 , IEEE 802.3u and IEEE 802.3ab standards.
- Smart Green Ethernet technology to reduce power consumption 30%~50%.
- Supports Auto-MDI/MDI-X, full/half duplex modes and auto-negotiation.
- Supports flow control , Non-blocking and Jumbo Frame.
- Complies with the IEEE 802.3 , IEEE 802.3u and IEEE 802.3ab standards.
- Smart Green Ethernet technology to reduce power consumption 30%~50%.
- Supports Auto-MDI/MDI-X, full/half duplex modes and auto-negotiation.
- Supports flow control , Non-blocking and Jumbo Frame.
SMART-GREEN ETHERNET AND GIGABIT-SPEEDS

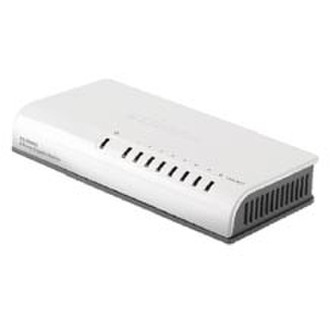

ES-5800G is Edimax’s new, smart-green Ethernet switch with gigabit speed that lessens energy-wastage to increase energy-efficiency. No more sluggish or failed, large-file transfer because this switch facilitates rapid, large-file transfers as well. ES-5800G is the ideal, energy-saving switch integrated with eight 10/100/1000Mbps Gigabit ports. It is designed to meet the increased demands of transferring large files speedily across networks. The switch detects the length of the Ethernet cable connection and automatically supplies the right amount of energy. It also reduces power consumption when ports are idle.
SUPPORTS FULL-WIRE-SPEED AND FLOW CONTROL
Enjoy guaranteed, quick data transfers with ES-5800G. It creates a high-speed Gigabit network, and users benefit from its enhanced performance and reliability. The ES-5800G complies with IEEE802.3, IEEE802.3u and IEEE802.3ab standards. Using non-blocking switching architecture, your network is equipped with full-wire speed connections. It activates flow control for full-duplex mode and back pressure for half-duplex mode that ensure reliable data transfers and help prevent data loss.
SUPPORTS JUMBO FRAME
The ES-5800G supports jumbo frame, which allows you to extend the Ethernet frame size to a maximum of 9600 bytes to increase data rates. This cost-efficient switch is the best choice for small office/home office needs.
SUPPORTS AUTO-MDI/MDI-X
The ES-5800G easy “plug and play” installation comes with auto-MDI/MDI-X support. Use either a straight-through or cross-over Ethernet cable and connect 10, 100 and 1000 Mbps devices into ES-5800G, and the switch will automatically detect suitable cable and device speeds for peak performance.
