Performance
| Maximum outdoor range |
1000 m |
| Firmware upgradeable |
Y |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Frequency band |
2.4 - 2.484 GHz |
| Internal memory |
32 MB |
| Flash memory |
4 MB |
| 2.4 GHz |
Y |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
Power
| Input current |
1 A |
| Power over Ethernet (PoE) |
Y |
| Input voltage |
12 V |
Security
| MAC address filtering |
Y |
| VPN support |
PPTP, IPsec, L2TP |
Antenna
| Antenna gain level (max) |
12 dBi |
Ports & interfaces
| WAN connection |
Ethernet (RJ-45) |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Transfer rate (Mbps) |
150 Mbit/s |
| AC adapter bundled |
Y |
2.4-2.484GHz, 4MB flash, 32MB SDRAM, 12dBi, WEP, WPA, WPA2, AE2, 250g, white
<b>Enhanced Coverage and Signal Strength</b>

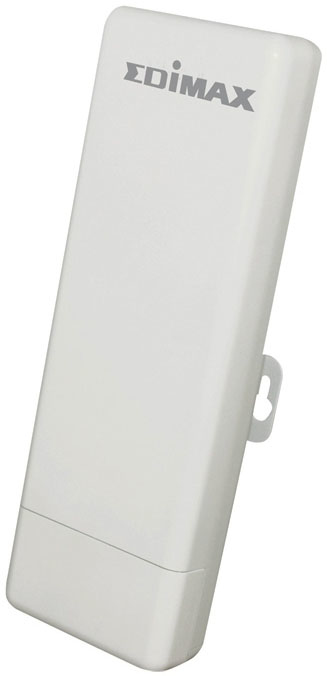

The Edimax EW-7303APn V2 is an outdoor range extender/access point that complies with wireless 802.11b/g/n standards. Its high quality design is enabling it to cover a distance of over 1 kilometer. The combination of cost-effectiveness and outstanding wireless performance make the EW-7303APn V2 the best choice for long distance wireless connectivity.
<b>12dBi High-Gain Antenna</b>
The outstanding high power performance of the EW-7303APn V2 is complimented by a built-in 12dBi directional panel antenna. This high-gain antenna not only increases the transmission distance, but also stabilizes the wireless signal for superb wireless performance. Additionally, the EW-7303APn V2 is designed with an SMA connector that enables the user to connect external antennas to this access point. Users can boost the transmission distance even further with a high dBi antenna or set up a Wi-Fi central station with an omni-directional antenna.
<b>Multiple Operation Modes</b>
The Edimax EW-7303APn V2 can be configured to operate in four modes: AP mode, WDS mode, WDS with AP mode, and repeater mode. With multiple operation modes, the EW-7303APn V2 is a versatile solution perfect for a wide range of wireless applications.
<b>Wireless 802.11n Standard</b>
The Edimax EW-7303APn V2 is a high-speed solution that complies with IEEE 802.11b/g/n standards. The latest wireless technology is built into this access point to broaden its wireless coverage and to reduce dead spots within the wireless range. When it is connected to wireless 802.11n compatible devices, the EW-7303APn V2 can achieve transmission rates of up to 150Mbps.
