Performance
| Frequency band |
2.412 - 2.484, 5.18 - 5.24, 5.26 - 5.32, 5.5 - 5.7, 5.745 - 5.825 GHz |
| Number of users |
100 user(s) |
| VLAN support |
Y |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Web-based management |
Y |
| Reset button |
Y |
| Quality of Service (QoS) support |
Y |
Antenna
| Antenna gain level (max) |
2 dBi |
| Antenna type |
External |
| Antennas quantity |
2 |
Power
| Input voltage |
12 V |
| Input current |
2.5 A |
| Power over Ethernet (PoE) |
Y |
Protocols
| Management protocols |
HTTP / HTTPS, SNMP v1/v2c/v3, Telnet, SSH |
Security
| VPN support |
PPTP, L2TP/IPsec |
| Authentication method |
RADIUS |
| MAC address filtering |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Transfer rate (Mbps) |
1200 Mbit/s |
802.11 a/b/g/n/ac, 2.4GHz / 5GHz, 2 x Gigabit Ethernet RJ-45, PoE, 527g

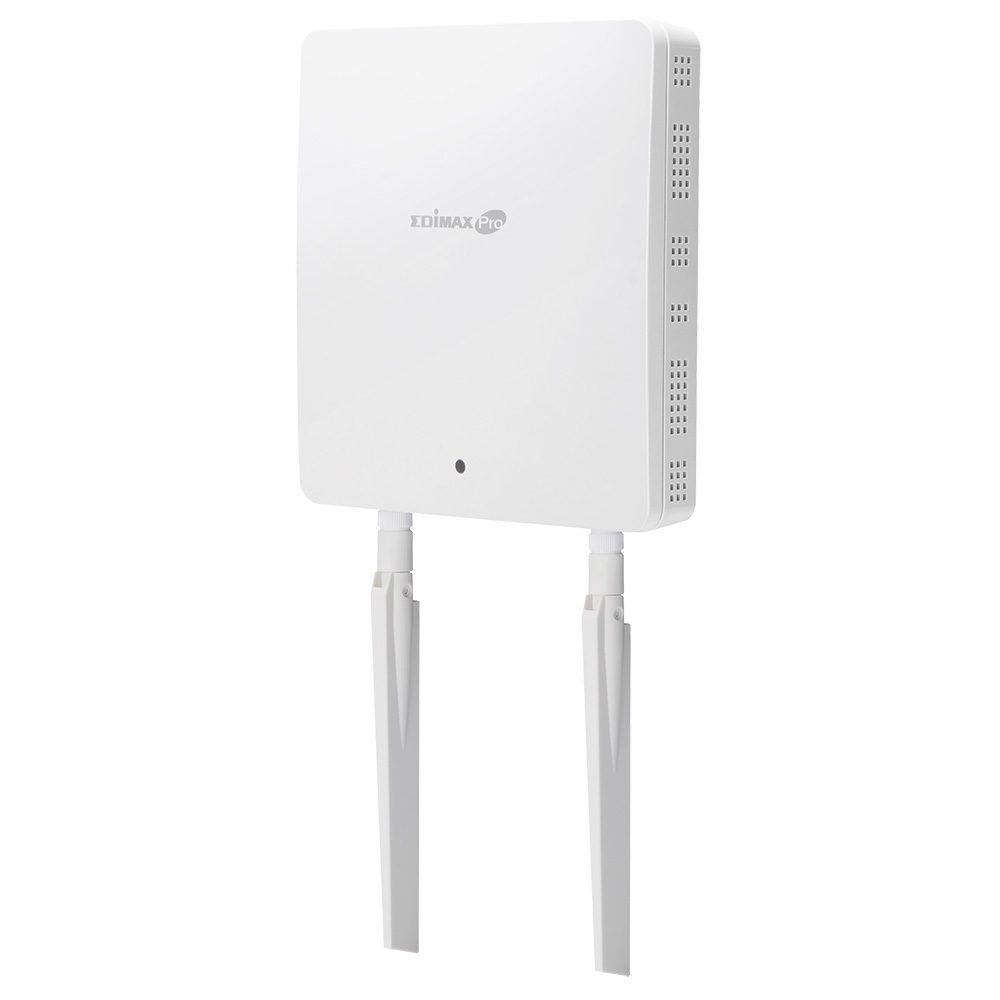

2 x 2 AC Dual-Band Wall-Mount PoE Access Point
Powerful 2.4GHz & 5GHz Dual-Band SMB Solution
- 802.11AC Dual-Band High Speed
- Easy Installation
- Designed for High Density Usage
- Multiple SSIDs for Security Management
- Fast Roaming
- Wide Coverage & High Sensitivity
- Seamless Mobility
- Power over Ethernet
- Built-In RADIUS Server
- Business Environments
- Central Management
- Optional Security Cover
The WAP1200 is high-speed, robust wireless solution designed to meet the needs of modern SMBs with the latest IEEE 802.11ac technology for wireless speeds up to 1200Mbps. A wall-mounted design, industrial-grade performance and build quality combined with user-friendly operation, 11ac speeds and an extensive feature set make an ideal dual-band solution for day-to-day enterprise operations.
For businesses that demand security, flexibility and speed – the Edimax Pro series has a wide range of potential applications from office environments to schools, campuses, hotels and hospitals. Multiple SSIDs can be configured for different departments or user groups and a built-in RADIUS server provides additional verification with a scalable AP array architecture for central management of multiple access points. High-density capacity for up to 100 simultaneous users is ideal for BYOD workplaces or other environments with a high volume of users and wireless devices, and fast roaming allows for seamless transitions between multiple access points. Power over Ethernet support (PoE) and an intuitive web-based management interface provide deployment flexibility and extensive management options for company MIS departments and network administrators. An optional security cover also prevents physical theft or tampering, along with a rogue AP detection function to safeguard your network from unauthorized access.
When performance and security are critical for your business, you need products that are engineered for your industry. The Edimax Pro series is designed to help your business and provide the connectivity that you rely on every day, with safety and effectiveness guaranteed.
