Security
| Firewall security |
NAT |
| VPN support |
IPSec/PPTP |
| MAC address filtering |
Y |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Other features
| Maximum data transfer rate |
0.054 Gbit/s |
| Supported WAN type |
PPPoE/Static IP/DHCP/L2TP/PPTP |
| xDSL connection |
N |
| Interface |
IEEE 802.11g/b / USB 2.0 |
| USB ports quantity |
1 |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11g |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
USB, 1 x WAN, 4 x 10/100Mps LAN ports, 802.11b, 802.11g
Internet Connection Sharing

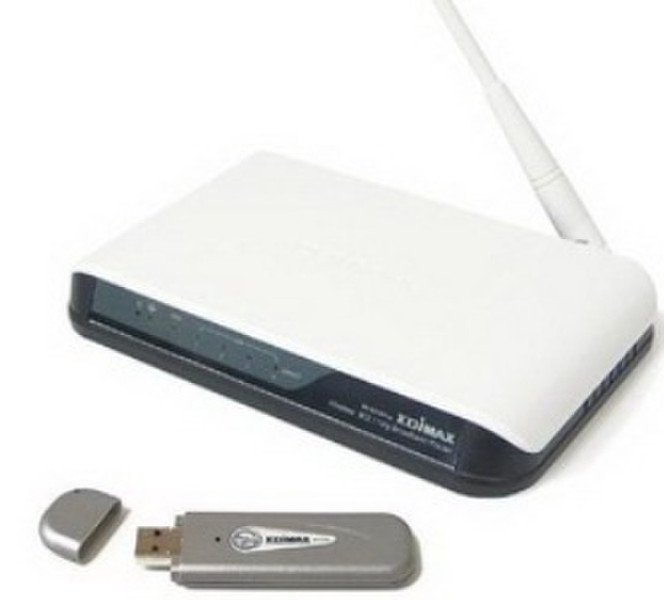

Integrated 4-port Ethernet switch and wireless 802.11b/g standards, BR-6204WLg is able to maximize Cable or xDSL Internet connection. With the built-in DHCP server and NAT function, it allows up to 250 wired or wireless devices share the Internet connection at the same time.
Wireless On/Off Switch
The push button on the back panel enables you to switch on/off wireless connection easily. When there is no wireless device in the environment, you can press the button to stop wireless signal. It protects you from unauthorized wireless connection and saves energy.
EZmax Multi-languages Setup Wizard *
A unique 16-language setup wizard is included in the CD ROM. You can select your native language and follow the simple steps to setup Internet connection, password, SSID, wireless security and firmware upgrade.
Port Forwarding and DMZ
BR-6204WLg supports port forwarding and DMZ. You can enjoy the Internet game play, setup a web server and execute other applications required ports opening.
EW-7318Ug USB Wireless Adapter
EW-7318Ug complies with IEEE802.11g standards and is backward compatible with IEEE802.11b standards. With the connection speed up to 54Mbps (5 times faster then IEEE802.11b), EW-7318Ug connects the laptop computer or desktop computer to the wireless network easily. You can also connect to any public wireless hotspot for Internet to retrieve e-mail, surf web sites or use instant messaging. EW-7318Ug gives you the freedom to join the network.
Wireless LAN Security
For WLAN security issues, this adaptor supports 64/128-bit WEP data encryption that protects your wireless network from eavesdropping. It also supports WPA (Wi-Fi Protected Access) feature that combines IEEE 802.1x and TKIP (Temporal Key Integrity Protocol) technologies. Client users are required to authorize before accessing to APs or AP Routers, and the data transmitted in the network is encrypted/decrypted by a dynamically changed secret key. Furthermore, this adaptor supports WPA2 function, WPA2 provides a stronger encryption mechanism through AES (Advanced Encryption Standard), which is a requirement for some corporate and government users.
Supports Turbo Mode
This adaptor supports higher data throughput than the IEEE 802.11g standard (up to 54Mbps). It supports specific ways to increase the data transfer rate at a time; compress the data and decrease the waiting time to send the next data to the Routers or APs. This feature is called Turbo Mode. When the adaptor is connecting to the Routers or APs with the proprietary feature, the wireless network will be more effective.
