Technical details
| Supported protocols |
NTP, SMTP, UPnP |
Video
| Playback resolutions supported |
1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768, 704 x 576, 704 x 480 |
| Display frame rate |
30 fps |
Ports & interfaces
| VGA (D-Sub) output ports |
1 |
| BNC input ports |
1 |
Hard drive
| Number of hard drives supported |
1 |
| Hard drive interface |
Serial ATA |
| Maximum hard drive capacity |
4000 GB |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
16 channels, H.264, BNC, RCA, 1080p, SATA, RJ-45, USB 2.0, 12 V DC, 285 x 210 x 45 mm

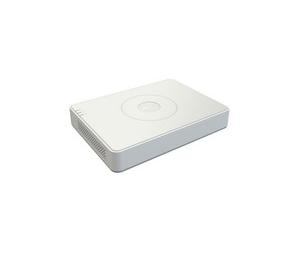

Developed on the basis of the latest surveillance technology, the MVADVR-16 provides not only high performance but also more compact design with more affordable cost, which makes it very
suitable for small and medium sized applications, such as homes, offices, retail shops, convenience stores, restaurant, etc.
The MVADVR-16 is adaptable in any installation space with smaller case design and to give you more flexibility. With embedded web server, mobile device viewing supported and friendly user interface, you will find the MVADVR-16 very easy in use.
- Main stream supports up to WD1 resolution in real time and sub stream supports CIF/QCIF resolution.
- Simultaneous VGA and CVBS outputs.
- VGA output at up to 1920×1080P resolution.
- Channel-zero encoding.
- Support dual stream.
- HDD quota management; different capacity can be assigned to different channel.
- Holiday recording schedule configuration.
- Smart searching for the event triggered record files.
- Digital zoom of video in live view or playback mode.
- Up to 4/8/16-ch synchronous playback.
- 1 self-adaptive 10M/100M network interface.
- IPv6 is supported.
- Network detection function.
- NTP, SMTP, UPnP™ protocols supported.
<b>MonitoringCenter Included</b>
The client software MicroView MonitoringCenter is a centralized video management software using a distributed structure for surveillance device control and management. MonitoringCenter is designed to provide access and management to the connected multiple devices, including DVR, NVR, DVS, network camera and decoder. Using the client, you can
easily live view the channels, record and store files, remotely configure the device parameters, control PTZ, get alarm information and respond, and display video on the TV wall.
