EFB Elektronik 692142.1 network chassis

EFB Elektronik 692142.1 network chassis

MPN: 692142.1
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

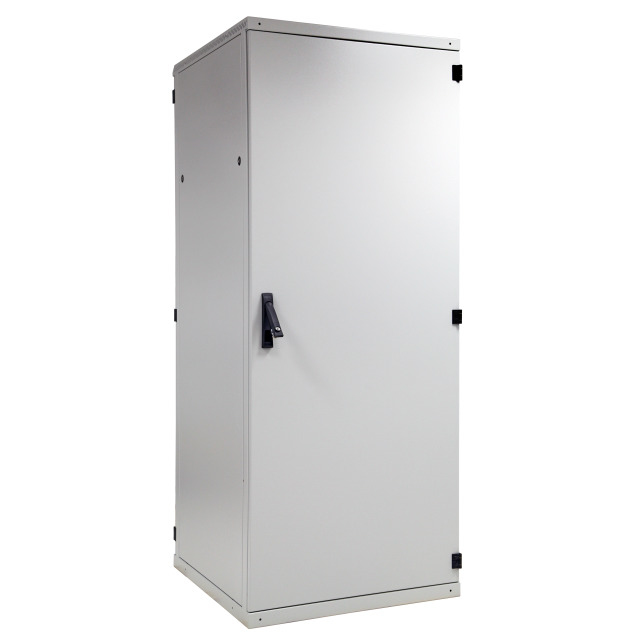

Network Cabinet 42U, RAL7035, Rear Door F. H. w/ TH, IP20 19" Network cabinet according to DIN 41494
Steel sheet housing with welded frame, completely pre-assembled, self-ventilated, not dismountable
Inside front and rear 4 x 19" profiles (2 front, 2 rear-sided), galvanised, depth-adjustable in 25 mm raster
Numbering of rack units at the 19" profiles
Front door with window of certified safety glass (thickness 5 mm)
Front door with 1-point turning handle, lockable, incl. profile half-cylinder acc. to DIN 18252 / EN1303
Rear door steel 1-part, full cabinet height with 1-point turning handle, lockable, incl. profile half-cylinder acc. to DIN 18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door mounting possible swiveling to the left and right side (standard: right)
Door opening angle front and rear 180° due to exterior hinges
Detachable side walls with 2 x latch locking (keys equal to the door lock)
Cabinets stackable side-by-side and rear-by-rear with and without removal of the side walls, bolt-set (Art.-No. 691644) suitable with removed walls, otherwise screwable via screws and nuts M6
Roof and bottom with 4 pre-punched openings for cable entry (front/rear/left/right) and for accommodation of fan/filter units (for 600 mm cabinet width cable entry only front/rear)
Internal earthing of all cabinet sections
Max. load 600 kg, increase to 1000 kg possible with traverse-set Art.-No. 691679N.x
Paint finish RAL7035, light grey
Protection degree IP20
Included accessories: 1 x brush terminal, 1 x set of captive nuts (PU 20 pcs.), 4 x levelling feet M10, 2 x key
Delivery in transport packaging on disposable pallet
