Performance
| Rated current |
11.3 A |
| Rated voltage |
230 V |
| Number of outlets |
2 |
| Rated power |
2600 W |
| Noise level |
96 dB |
| Motor type |
Synchronous motor |
| Number of strokes |
4 |
| Engine speed (max) |
3000 RPM |
| Engine power |
5.6 hp |
| Engine displacement |
208 cm³ |
| Number of cylinders |
1 |
| Fuel tank capacity |
15 L |
| Oil level indicator |
Y |
| Maximum power |
4100 W |
| Rated frequency |
50 Hz |
| Fuel level indicator |
Y |
| Maximum power @ rated voltage |
3100 W |
| Running time @ 2/3 load |
11 h |
Weight & dimensions
| Depth |
465 mm |
| Width |
625 mm |
| Weight |
42400 g |
| Height |
475 mm |
| Package weight |
45500 g |
Design
| Castor wheels |
Y |
| Number of wheels |
2 wheel(s) |
Additionally
| Colour of product |
Black, Blue, Silver |

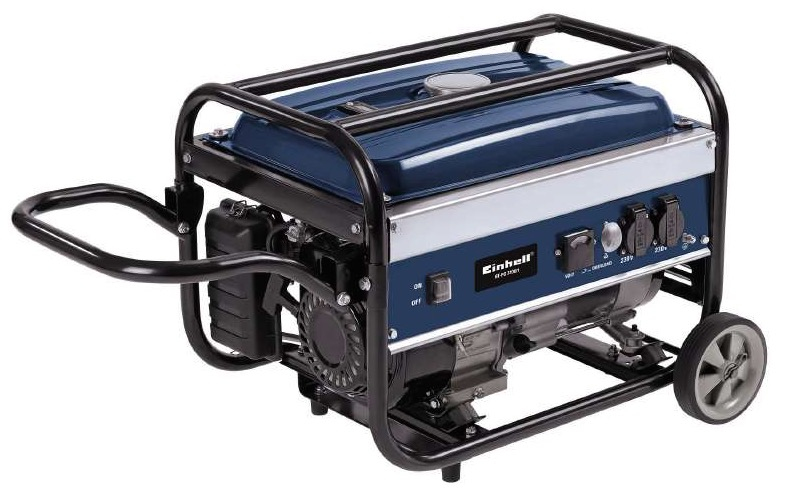

BT-PG 3100/1 - Petrol, 2600W, 50Hz, Synchronous
The powerful BT-PG 3100/1 petrol generator ensures that power is available reliably and permanently in remote places and during a mains power failure. Light sources and other electrical devices can be easily operated from two 230V socket outlets With a continuous output of 2600 W, the combination of synchronous generator and long-lasting four-stroke engine supplies plenty of power for a wide range of applications. The automatic voltage control system (AVR) protects the engine and connected equipment by providing a stable output voltage, quickly compensating load changes, and reducing undervoltages and overvoltages. Started by reversing start, the BT-PG 3100/1 also supplies the necessary power peaks for the starting current of large inductive consumers. An overload switch protects the machine from permanent peak loads. The actual current can be read off the practical voltmeter at a glance. Prolonged duty is no problem thanks to the generous reserves of a 15 liter tank and a crank shaft with bilateral bearings. A tank indicator means you have the fuel level always in view. There is an integrated low oil cut-out which will switch off the unit immediately if the level of oil in the engine drops too low. A carry-frame, hinged handle and sturdy wheels make for user-friendly transportation.
