Features
| Cutting disc swivel angle |
45 ° |
| Blade diameter |
200 mm |
| Maximum power |
800 W |
| No-load speed |
3000 RPM |
| Cutting length |
52 mm |
| Cutting height @ 90° |
30 mm |
| Diamond disc |
Y |
| Cutting height @ 45° |
25 mm |
Weight & dimensions
| Table width |
570 mm |
| Table depth |
385 mm |

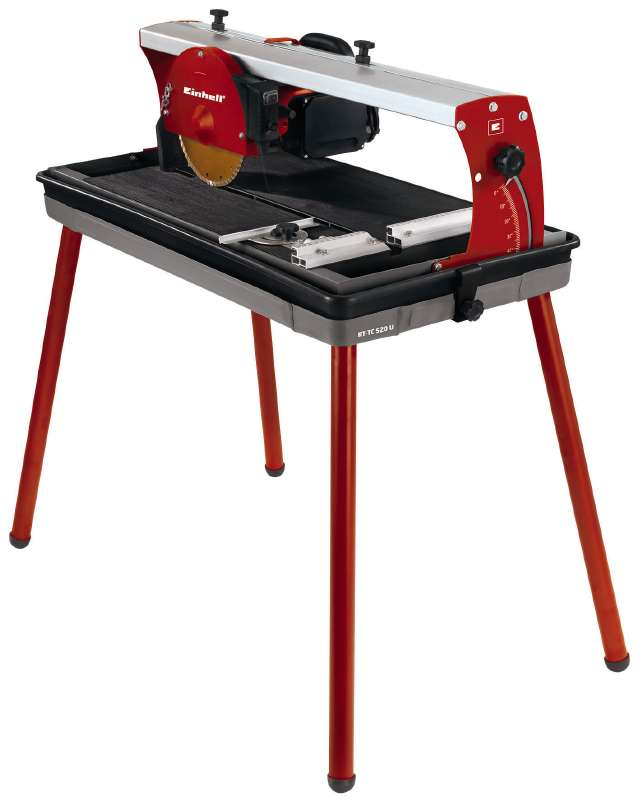

Radial Tile Cutting Machine
The RT-TC 520 U radial tile cutting machine is a reliable, high-quality machine for cutting wall tiles and floor tiles quickly and exactly to size. Its robust 800 W motor has ample power for driving the 200 mm diameter turbo diamond cutting wheel speedily through even hard-to-cut material.
The swiveling motor head of the RT-TC 520 U has a motor guide with a 4-fold ball bearing and is suitable for cutting materials up to 520 mm long. The large work table with non-slip rubber surface rests on a robust base frame. For precision work there is a removable laser which marks the cutting line exactly on the workpiece. Water for cooling the cutting wheel is conveyed from the solid water collection tank by an integrated water pump. Miter cuts, double miter cuts and longitudinal cuts can be performed with just a few moves thanks to the motor head which can be infinitely swiveled from 0° to 45° and the aluminium angle stop which can be adjusted exactly to the degree.
