Display
| Vertical scan range |
55 - 75 Hz |
| Active display area (W x H) |
210.4 x 157.8 mm |
| HD type |
Not supported |
| Native aspect ratio |
4:3 |
| Display type |
LED |
Ports & interfaces
| DVI port |
N |
| S-Video in |
Y |
| VGA (D-Sub) input ports |
1 |
| Composite video in |
1 |
| USB port |
N |
Performance
| Multi-display supported |
N |
| TV tuner integrated |
N |
| HDCP |
N |
Other features
| Swivel angle range |
-35 - 35 ° |
| Swivelling |
Y |
| DC-in jack |
Y |
Design
| Tilt adjustment |
Y |
| Tilt angle |
0 - 30 ° |
Additionally
| Display scan frequency (horizontal) |
24 - 50 kHz |
| AC adapter bundled |
Y |
| Ethernet LAN connection |
N |

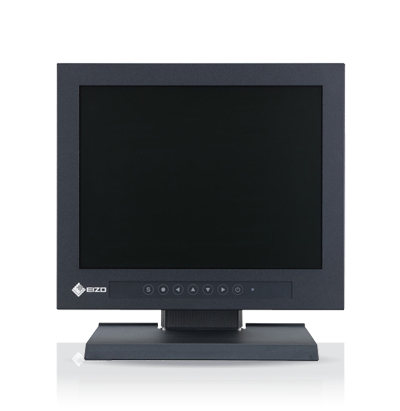

26.416 cm (10.4 ") (26cm) TN LED, 1024x768, 4:3, 600cd/m², 16ms, 1.6M, VGA, Composite, S-Video, 11W, IP65, 13kg, Gray/Black
Available in Five Configurations
To meet the needs of different industrial environments, this monitor is available in five configurations: standard (with stand), free mount (no stand), chassis, panel mount, and rack mount.
IP65 Rating for Panel Mount Configuration
The front panel of the panel mount configuration is IP65-rated meaning it can withstand dust ingress and is protected against low-pressure water jets. This durability ensures the monitor is ideal for deployment in factories.
PC and AV Inputs
A D-sub analog input is included for connecting to PCs. Composite (RCA) and S-video inputs which support NTSC, PAL, and SECAM are included for connecting to audio/visual equipment.
Underscan and Normal Display
Both underscan and normal display settings are available. Underscan shows the entire image and is ideal for watching video. Normal display about 95% of the image - eliminating extraneous TV broadcasting data that sometimes appears at the edge of the screen.
Mercury-Free, White LED Backlight
The LED backlight is more energy efficient than the CCFL backlights used with most LCD monitors. Even at the maximum brightness setting of 600 cd/m2, the monitor consumes just 13 watts of power. Since the backlight is mercury free, it will have minimal impact on the environment when it is disposed of.
Durable Construction
To prevent dust or liquids from entering, the DuraVision FDX1001 does not contain any ventilation holes and there are no gaps around the perimeter of the control buttons.
Cross Line Display
For convenience when using with an optical microscope, the DuraVision FDX1001 can display cross lines. The cross lines can be set to three different thicknesses and four different colors (black, white, green, red).
