EK Water Blocks 3831109820865

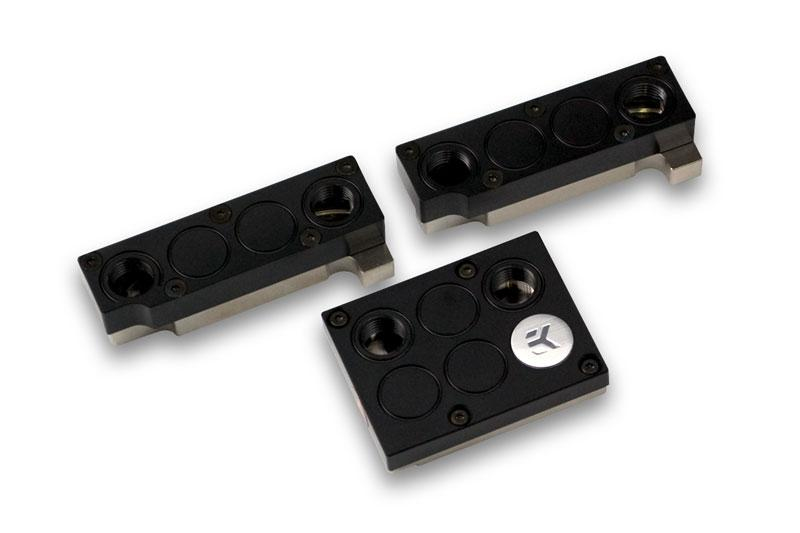

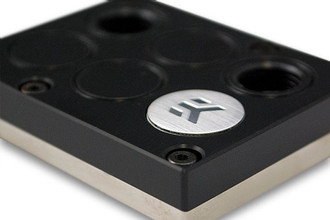

EK-FB KIT ASUS Z9PE-D8, Acetal+Nickel EK-FB KIT ASUS Z9PE-D8 full-board water block kit is a complete liquid cooling solution for ASUS Z9PE-D8 WS (90-MSVDY0-G0EAY00T) motherboard. The water blocks directly cools Intel C602 southbridge (PCH) and power regulation (VRM / MOSFETs) module of both CPUs. It is a high flow water block kit that can be easily used with systems using weaker water pumps.

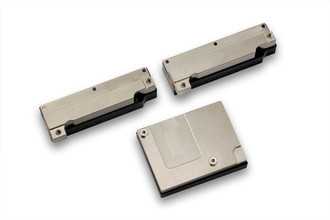

Base of the waterblock is made of nickel plated electrolytic copper while the top is made of quality POM Acetal material. The sealing is performed by quality rubber gaskets.

Water block is mounted with enclosed M2.5x4 DIN7985 and M3x8 DIN7991 screws and PVC washers. The 2.5mm nickel plated brass screw-in standoffs are already preinstalled and allow for easy installation. EK designed backplates for MOSFET water block are included.

Enclosed thermal pad is used on voltage regulator modules to improve cooling performance of the waterblock. On the southbridge (PCH) chip please use any electrically non-conductive thermal grease, e.g. Arctic Cooling MX-4.

- 3 x water blocks (2x MOSFET & SB)

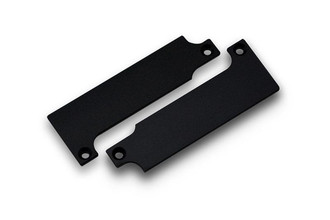

- 2 x black anodized MOSFET backplate
- mounting mechanism
- thermal pads
