EK-FC7970 Matrix, Acetal+Nickel

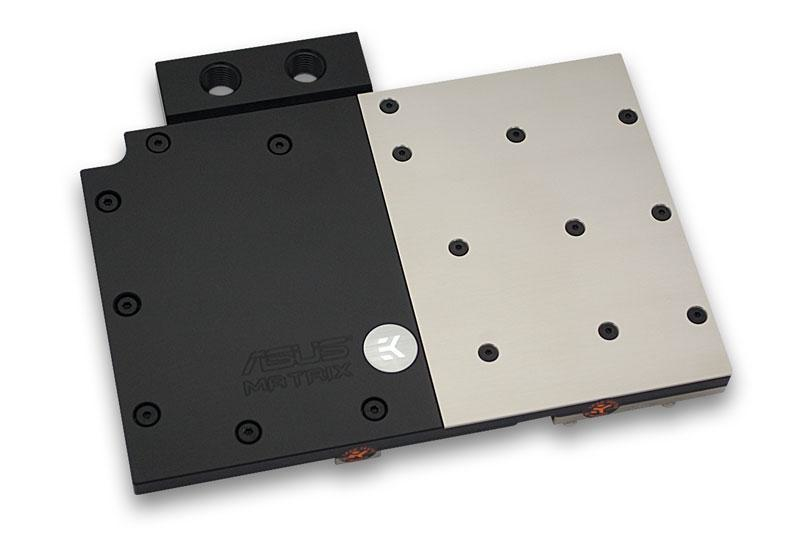

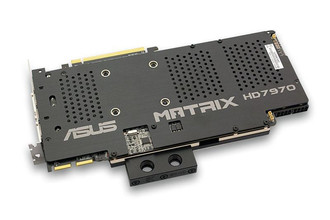

EK-FC7970 Matrix is a high performance full-cover water block, engineered specifically for ASUS design Radeon HD 7970 Matrix series graphics cards. Please check our Cooling Configurator online compatibility system for detailed compatibility list!
This water block directly cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the graphics card and it's VRM to remain stable under high overclocks. EK-FC7970 Matrix water block also features a very high flow design therefore it can be easily used in liquid cooling systems using weaker water pumps.

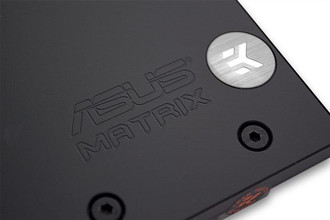

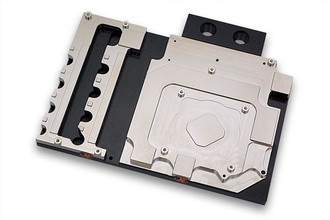

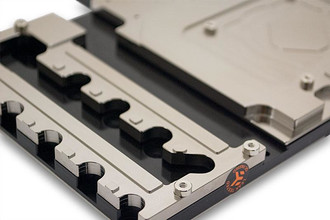

Base is made of nickel plated electrolytic copper while the top is made of quality POM Acetal material. The sealing is ensured by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure. Block is mounted with enclosed M2.5x4- & M2.5x6 DIN7985 screws, factory provided backplate can be re-used.
EKWB also encloses two-slot I/O bracket which replaces the original three-slot, in order to make installation of mutliple graphics cards easier.
G1/4" threaded fittings can be used on both sides of the FC terminal. Flow orientation doesn't matter and is thus not prescribed.
Up to four EK-FC7970 Matrix water blocks can be used on a single ATX form factor motherboard by using EK-FC Terminal (DUAL, TRIPLE or QUAD type) system or other means of interconnectivity. Please note that EK-FC Bridge & Link system is not compatible with this water block.
- EK-FC7970 Matrix series water block
- EK-FC7970 DCII 2-slot I/O bracket
- mounting mechanism with screw-in brass standoffs
- thermal pads
