EK-FC Titan, Nickel
EK-FC Titan is a high performance full-cover water block for nVidia reference (NVA-P2083) design GeForce GTX Titan series graphics cards. Please check our Cooling Configurator online compatibility system for detailed compatibility list!
This water block directly cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the graphics card and it's VRM to remain stable under high overclocks. EK-FC Titan water block also features a very high flow design therefore it can be easily used in liquid cooling systems using weaker water pumps. The cooling engine now uses refined, more narrow microchannel structure to even further improve the heat transfer.

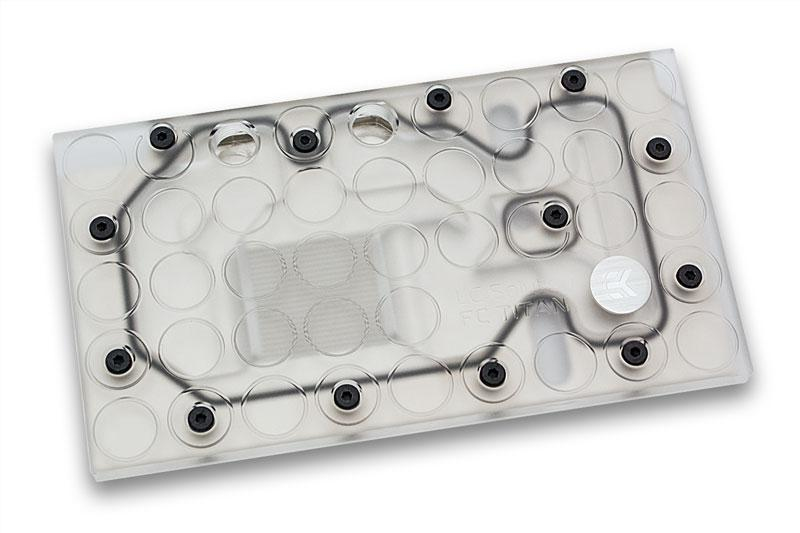

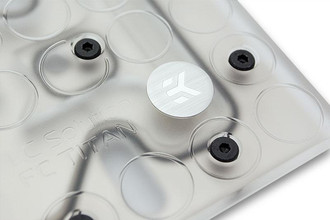

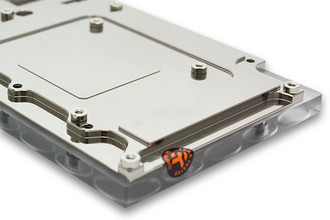

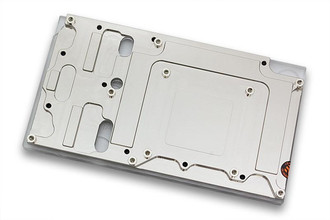

Base is made of nickel plated electrolytic copper while the top is made of quality cast Satin finnish acrylic material. The sealing is ensured by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure. Block is mounted with enclosed M3x4 DIN7985 screws.
EKWB recommends the purchase of aesthetic retention backplate (EK-FC Titan Backplate - Black) which improves the looks of your graphics cards and also provide some passive cooling to the VRM section.
G1/4" threaded fittings can be used directly on blocks top or on the enclosed FC link. Flow orientation doesn't matter and is thus not prescribed.
Up to four EK-FC Titan series water blocks can be interconnected with EK-FC Bridge & Link CSQ system. The EK-FC Link is already enclosed. Please note that this water block cannot be interconnected with any other EK-FC Titan series water block which uses FC Terminal.
- EK-FC Titan series water block
- EK-FC Link (Original CSQ)
- mounting mechanism with screw-in brass standoffs
- thermal pads
