Power
| Fan current |
0.12 A |
| Fan voltage |
12 V |
| Pump voltage |
12 V |
Weight & dimensions
| Radiator depth |
130 mm |
| Radiator height |
64 mm |
| Radiator width |
280 mm |
| Fan diameter |
120 mm |
| Tube length |
2 mm |
Technical details
| Maximum airflow |
58.8 cfm |
| Number of fans |
2 |
| Radiator |
Y |
| Fan |
Y |
| Fan speed (max) |
1600 RPM |
EK-KIT H3O 240 HFX, EK-CoolStream RAD XTX 240, EK-DCP 4.0 Pump, 2 x EK-FAN Silent, 8 x EK-PSC
The EK-KIT 240 HFX is an advanced water cooling kit dedicated to all users that seek quality and efficient, yet simple to use all-in-one water cooling solution.
Supreme HF series water block is the top performing product. It offers nothing but the best thermal- and hydraulic performance. It's universal mounting mechanism allows installation on any desktop platform, including the newest Intel LGA-2011. EasyMount HF mounting systems ensured the perfect mount every time!

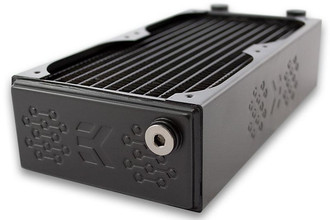

EK-CoolStream RAD XTX 240 is the highest performance radiator. Due to it's thickness of 64mm please make sure you computer chassis can accomodate it (EK also offers radiator holders for external mounting). EK-DCP 4.0 is a high performance water pump that has been proven by the enthusiast of the water cooling community as the one of most reliable water pumps.
Kit is easy to install, use and maintain, a thorough installation manual is included. Further descriptions and specifications of individual items can be found in EK webshop.
This kit can also be upgraded with an additional EK-VGA Supreme HF, EK-FB, EK-FC or EK-RAM series waterblock!

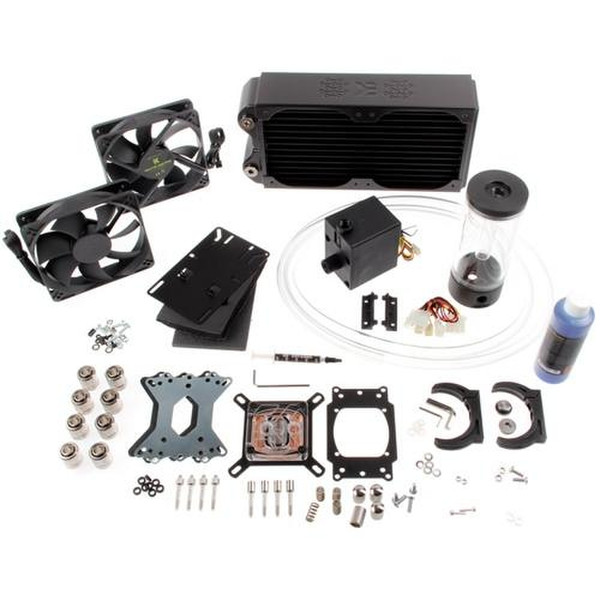

EK-KIT H3O 240 HFX water cooling kit includes following items:

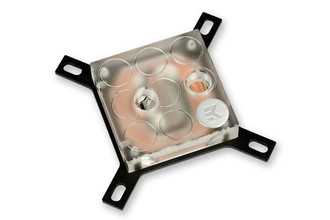

- EK-Supremacy

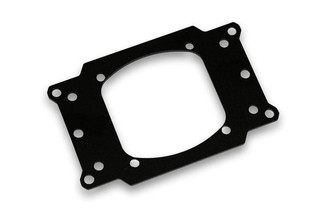

- EK-Backplate CPU Universal
- EK-CoolStream RAD XTX 240

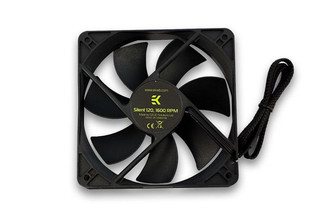

- EK-FAN Silent 120-1600 RPM (2 pcs)

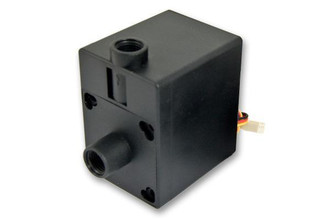

- EK-DCP 4.0 Pump

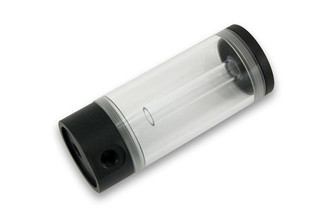

- EK-Multioption RES X3 150
- EK-DCP PUMP mounting plate KIT

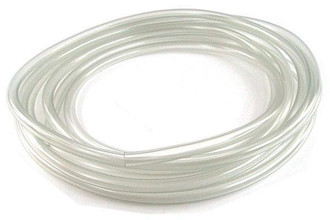

- TUBE Masterkleer 12,7/9,5 CLEAR (2 meters)

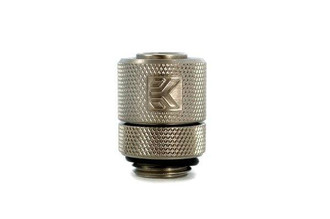

- EK-PSC Fitting 10mm - G1/4 Nickel (8 pcs)
- EK-Ekoolant UV Blue (concentrate 100ml)
- TIM Gelid GC-Xtreme (EKWB 2g)
This water cooling kit is compatible with the following CPU sockets:
- Intel LGA-775
- Intel LGA-1155/1156
- Intel LGA-1366
- Intel LGA-2011
- AMD Sockets: 939, 754, 940
- AMD Sockets: AM2, AM2+, AM3, AM3+
