Technical details
| Number of fans |
1 |
| Radiator |
Y |
| Fan |
Y |
| Fan speed (max) |
1600 RPM |
| Fan connector |
3-pin |
Weight & dimensions
| Fan diameter |
120 mm |
| Tube length |
200 mm |
| Radiator depth |
119 mm |
| Radiator height |
47 mm |
| Radiator width |
154 mm |
Power
| Pump voltage |
12 V |
| Fan voltage |
12 V |
| Fan current |
0.12 A |
| Pump current |
0.62 mA |
EK-KIT H3O 120 LTX EOL
The EK-KIT 120 LTX is a basic water cooling kit dedicated to all users that seek quality and efficient, yet simple to use all-in-one water cooling solution.
Supreme LTX water block uses of the most efficient cooling engines. It offers exceptional value for money without sacrificing thermal- nor hydraulic performance. It's universal mounting mechanism allows installation on any desktop platform, including the newest Intel LGA-2011.
Single EK-CoolStream RAD XT 120 radiator will fit in virtually any modern computer chassis and will succesfully take heat out of your system. EK-DCP 2.2 water pump has been also proven by the enthusiast of the water cooling community as the one of most reliable water pumps.
Kit is easy to install, use and maintain, a thorough installation manual is included. Further descriptions and specifications of individual items can be found in EK webshop.

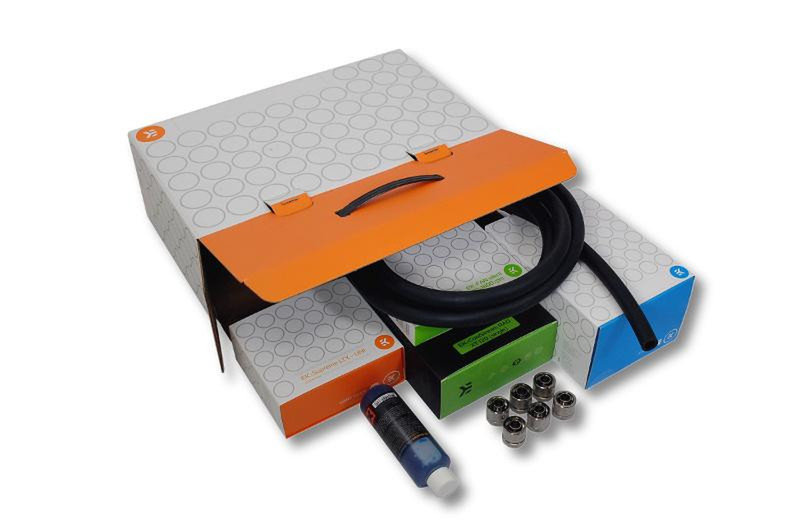

EK-KIT H3O 120 LTX water cooling kit includes following items:

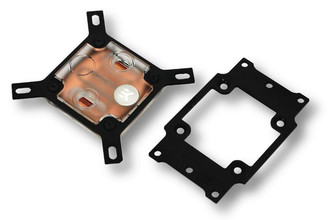

- EK-Supreme LT - UNI (universal CPU block based on EK-Supreme LTX)
- EK-Backplate CPU Universal

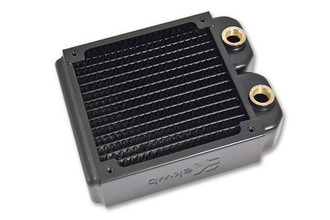

- EK-CoolStream RAD XT 120

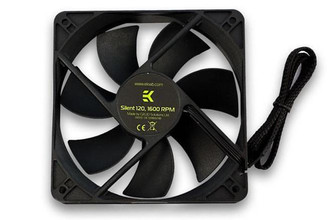

- EK-FAN Silent 120-1600 RPM
- EK-DCP 2.2 Pump

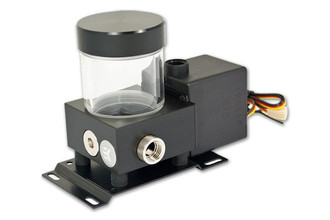

- EK-Reservoir Combo DCP 2.2
- EK-DCP PUMP mounting plate KIT
- TUBE Masterkleer 12,7/9,5 CLEAR (2 meters)

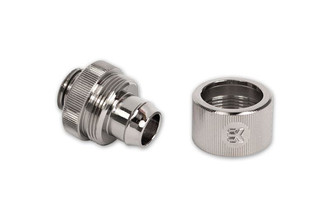

- EK-PSC Fitting 10mm - G1/4 Nickel (6 pcs)
- EK-Ekoolant UV Blue (concentrate 100ml)
- TIM Gelid GC-Xtreme (EKWB 2g)
This water cooling kit is compatible with the following CPU sockets:
- Intel LGA-775
- Intel LGA-1155/1156
- Intel LGA-1366
- Intel LGA-2011
- AMD Sockets: 939, 754, 940
- AMD Sockets: AM2, AM2+, AM3, AM3+
