Technical details
| Fan connector |
3-pin |
| Number of fans |
2 |
| Radiator |
Y |
| Fan |
Y |
| Fan speed (max) |
1600 RPM |
| Fan speed (min) |
120 RPM |
Power
| Pump current |
0.62 mA |
| Fan current |
0.12 A |
| Fan voltage |
12 V |
| Pump voltage |
12 V |
Weight & dimensions
| Radiator depth |
123 mm |
| Radiator height |
47 mm |
| Radiator width |
276 mm |
| Fan diameter |
120 mm |
| Tube length |
200 mm |
EK-KIT H3O 240 LTX EOL
The EK-KIT 240 LTX is a water cooling kit dedicated to all users that seek quality and efficient, yet simple to use all-in-one water cooling solution.
Supreme LTX water block uses of the most efficient cooling engines. It offers exceptional value for money without sacrificing thermal- nor hydraulic performance. It's universal mounting mechanism allows installation on any desktop platform, including the newest Intel LGA-2011.
EK-CoolStream RAD XT 240 radiator will fit in virtually in most of modern computer chassis and will succesfully take heat out of your system. EK-DCP 2.2 water pump has been also proven by the enthusiast of the water cooling community as the one of most reliable water pumps.
Kit is easy to install, use and maintain, a thorough installation manual is included. Further descriptions and specifications of individual items can be found in EK webshop.
This kit can also be upgraded with an additional EK-VGA Supreme HF, EK-FB, EK-FC or EK-RAM series waterblock!

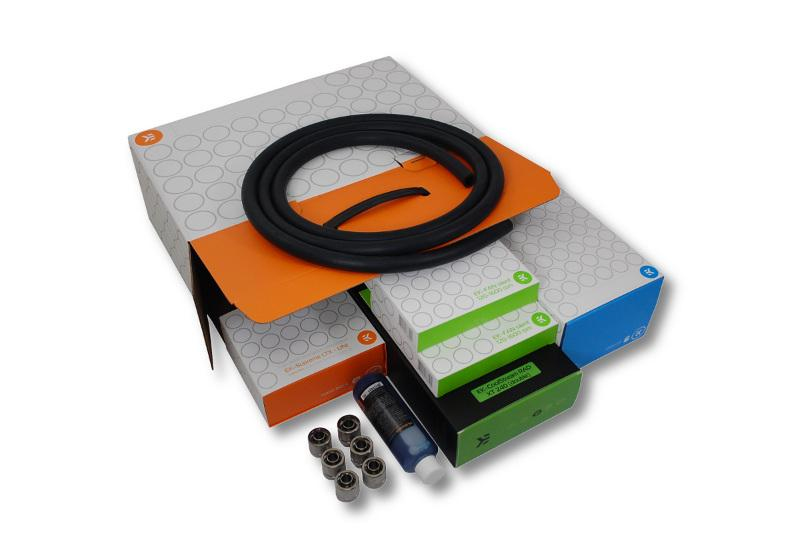

EK-KIT H3O 240 LTX water cooling kit includes following items:

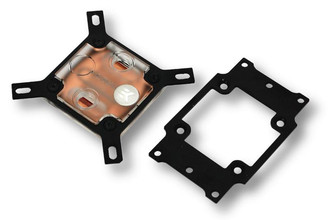

- EK-Supreme LT - UNI (universal CPU block based on EK-Supreme LTX)
- EK-Backplate CPU Universal

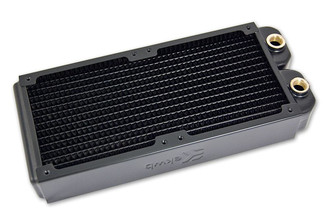

- EK-CoolStream RAD XT 240

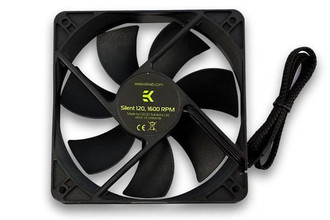

- EK-FAN Silent 120-1600 RPM (2 pcs)
- EK-DCP 2.2 Pump

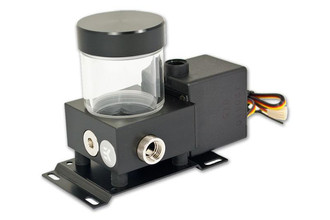

- EK-Reservoir Combo DCP 2.2
- EK-DCP PUMP mounting plate KIT
- TUBE Masterkleer 12,7/9,5 CLEAR (2 meters)

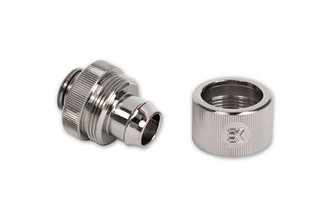

- EK-PSC Fitting 10mm - G1/4 Nickel (6 pcs)
- EK-Ekoolant UV Blue (concentrate 100ml)
- TIM Gelid GC-Xtreme (EKWB 2g)
This water cooling kit is compatible with the following CPU sockets:
- Intel LGA-775
- Intel LGA-1155/1156
- Intel LGA-1366
- Intel LGA-2011
- AMD Sockets: 939, 754, 940
- AMD Sockets: AM2, AM2+, AM3, AM3+
