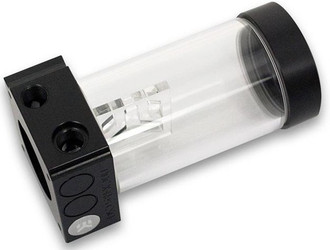

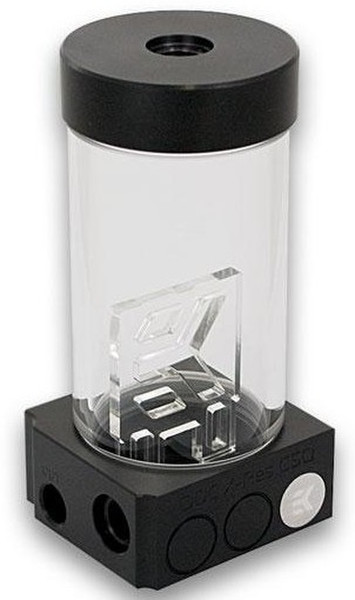

EK Water Blocks EK-DDC X-RES 140 CSQ - Acetal

High Performance Aftermarket Pump Top for Laing DDC Series Water Pumps @ Integrated Reservoir High performance aftermarket pump top (volute) for Laing DDC series water pumps with integrated reservoir. This top offer increased hydraulic performance (up to 15%) compared to factory top.

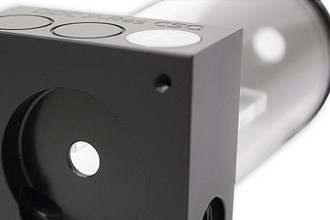

This top features three G1/4 threaded ports of which one is inlet and two are outlets. By using the enclosed EK-Extender G1/4 installation of virtually any G1/4 thread fitting/barb is possible. EK recommends EK-PSC series compression fittings.

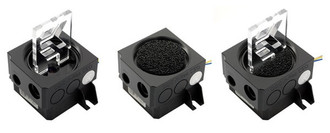

EK-DDC X-RES series reservoirs comes preinstalled with anti-cyclone insert. Additionaly a PU anti-vortex foam is enclosed.

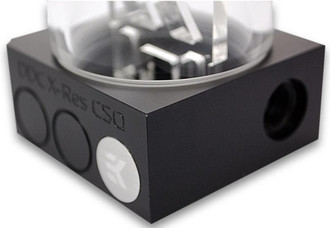

Tube is made of quality acrylic material, while the volute / reservoir bottom is made of quality POM Acetal material.

This reservoir can be easily upgraded with longer tubes used by EK-RES X3 series reservoirs. Replacement tubes can be purchased separately via EK Webshop.

Technical data:
- Reservoir Diameter 60mm.
- Overal Height: 140mm (161mm incl. pump).

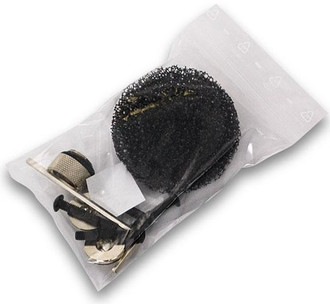

Enclosed:
- 1x Extender G1/4.
- 2 x G1/4 plugs.
- screws.
- allen key.
- anti-vortex polyether black foam.
