EK Water Blocks EK-FB ASR Z77 Extreme11

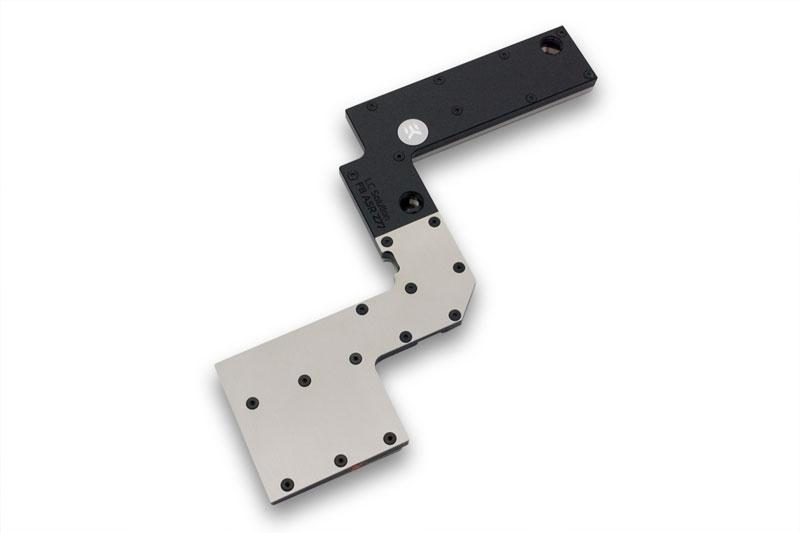

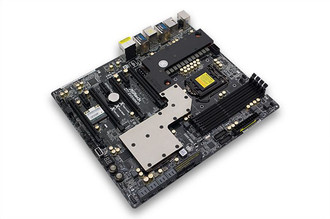

EK-FB ASR Z77 Extreme11, Acetal+Nickel EK-FB ASR Z77 Extreme11 water block is a complete liquid cooling solution for ASRock Z77 Extreme11 motherboard. This water blocks directly cools Intel Z77 southbridge (PCH), PLX PEX 8474 PCIe lane splitter, LSI SAS2308 control hub as well as power regulation (VRM / MOSFETs) module. It is a high flow water block that can be easily used with systems using weaker water pumps.

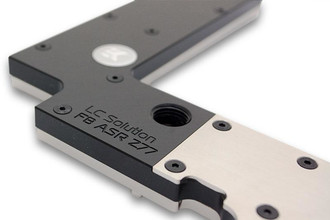

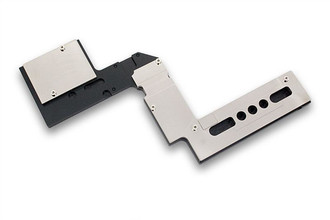

Base of the waterblock is made of nickel plated electrolytic copper while the top is made of quality POM Acetal material. The sealing is performed by quality rubber gaskets.

Water block is mounted with enclosed M2.5x4 DIN7985 screws and PVC washers. The 2.1mm nickel plated brass screw-in standoffs are already preinstalled and allow for easy installation.

Enclosed thermal pad is used on voltage regulator modules to improve cooling performance of the waterblock. On the southbridge (Z77 PCH), LSI SAS controller and PLX PCIe lane splitter chip please use any electrically non-conductive thermal grease, e.g. Gelid GC-Extreme.

Enclosed:
- water block
- mounting mechanism
- thermal pads

Fittings are optional and are not enclosed! Two fittings are needed for proper operation.

Made in Slovenia - Europe!
