Motherboard Watercooling for ASUS Maximus IV Extreme

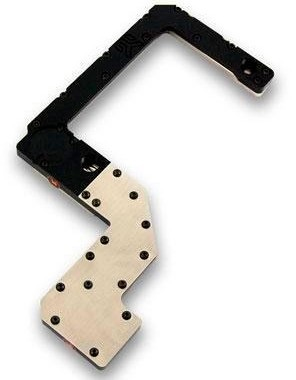

EK-FB ASUS Max4 Extreme is a complete solution for ASUS Maximus IV Extreme motherboard watercooling of chipset and Mosfets (power regulators).
PLEASE NOTE:
- As this waterblock was designed for original ASUS Maximus IV Extreme motherboard it will not perfectly fit ASUS Maximus IV Extreme-Z motherboard. Bending of one capacitor is required in order to install the waterblock.
- Due to immense variety of fittings/barbs available on market and no prescribed standards, we guarantee compatibility only for connectors bought from our web site.
- Due to superior nickel plating method and corrosion resistance, the waterblock may loose brightness over time and become of a bit duller tone.
As this waterblock was designed for original ASUS Maximus IV Extreme motherboard it will not perfectly fit ASUS Maximus IV Extreme-Z motherboard. Bending of one capacitor is required in order to install the waterblock.

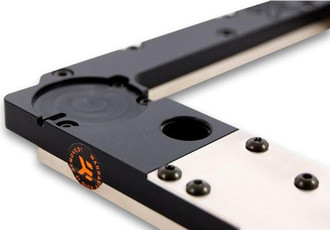

Base is made of electroless nickel (EN) plated electrolytic copper. Top is made of quality acrylic material and covered with laser cut stainless steel. The sealing is performed by quality rubber gaskets.
Block is mounted with enclosed M3 screws and PVC washers.
Thermal pad is used for better contact of Mosfet chips. For NB and SB please use any electrically non-conductive thermal grease.
