EK Water Blocks EK-FB KIT ASUS M5F - Acetal+Nickel

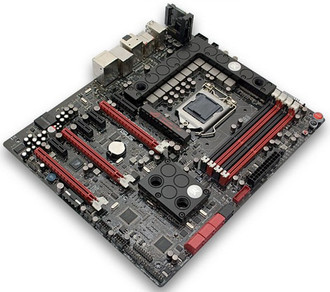

Water Block Kit for ASUS Maximus V Formula motherboard EK-FB KIT ASUS M5F water block kit is a complete liquid cooling solution for ASUS Maximus V Formula motherboard. The water blocks directly cools southbridge (PCH) and power regulation (VRM / MOSFETs) module. It is a high flow water block kit that can be easily used with systems using weaker water pumps.

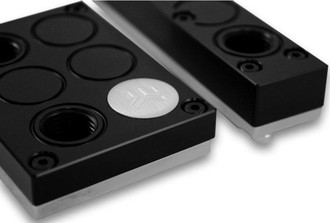

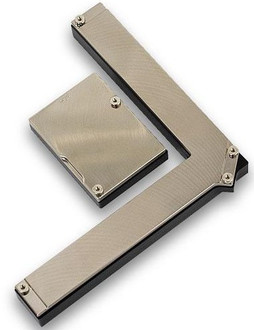

Base of the waterblock is made of nickel plated electrolytic copper while the top is made of quality POM Acetalmaterial. The sealing is performed by quality rubber gaskets.

Water block is mounted with enclosed M2.5x4 and M2,5x6 DIN7985 screws and PVC washers. The 2.1mm nickel plated brass screw-in standoffs are already preinstalled and allow for easy installation.

Enclosed thermal pad is used on voltage regulator modules to improve cooling performance of the waterblock. On the southbridge (PCH) chip please use any electrically non-conductive thermal grease, e.g. Gelid GC-Extreme.

Enclosed:

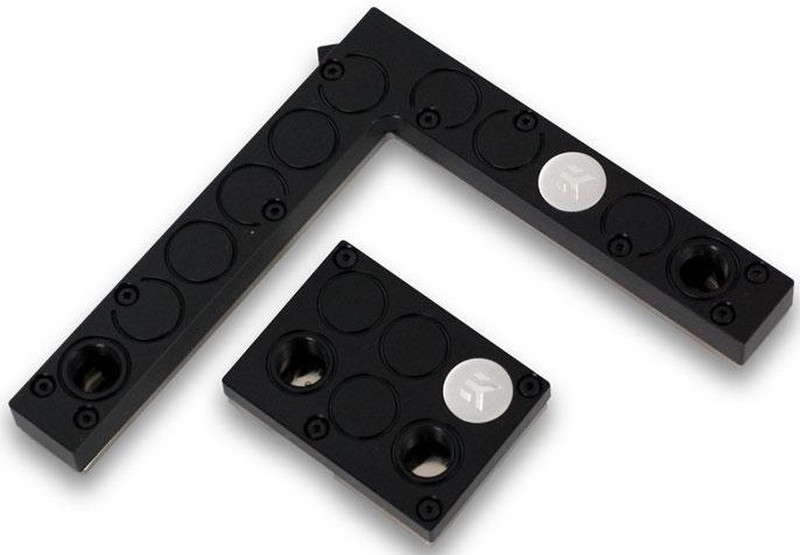

- 2 x water blocks (MOSFET & SB).
- mounting mechanism.
- thermal pads.

Fittings are optional not enclosed! Four fittings are needed to make this waterblock operate properly.
