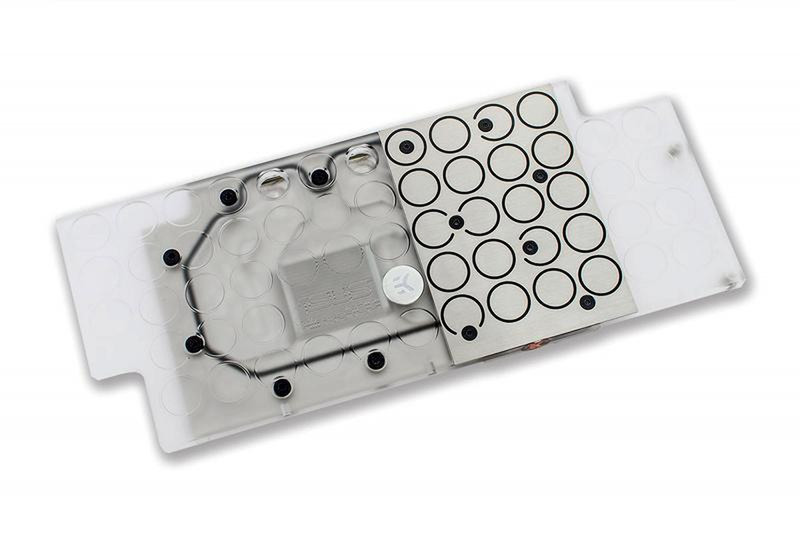

EK Water Blocks EK-FC780 GTX DCII

EK-FC780 GTX DCII - Nickel (Original CSQ) EK-FC780 GTX DCII is a high performance full-cover water block for engineered specifically for ASUS design GTX 780 DirectCU II series graphics cards. Please check our Cooling Configurator online compatibility system for detailed compatibility list!

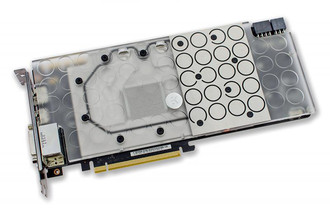

This water block directly cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the graphics card and it's VRM to remain stable under high overclocks. EK-FC780 GTX DCII water block also features a very high flow design therefore it can be easily used in liquid cooling systems using weaker water pumps.

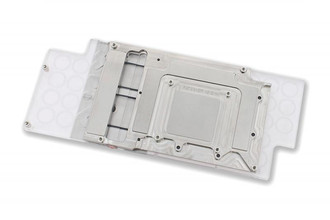

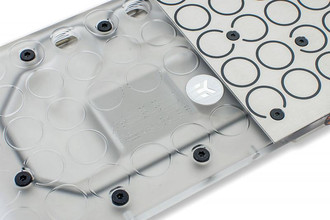

Base is made of nickel plated electrolytic copper while the top is made of quality satin finish Acrylic material. The sealing is ensured by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure. Block is mounted with enclosed M3x4 DIN7985 screws.

EKWB recommends the purchase of aesthetic retention backplate EK-FC780 GTX DCII Backplate - Black which improves the looks of your graphics cards and also provide some passive cooling to the VRM section.

Flow orientation doesn't matter and is thus not prescribed.

Up to four EK-FC780 GTX DCII series water blocks can be interconnected with EK-FC Bridge & Link CSQ system. The EK-FC Link is already enclosed.
