EK-FCQ6000 Water Block

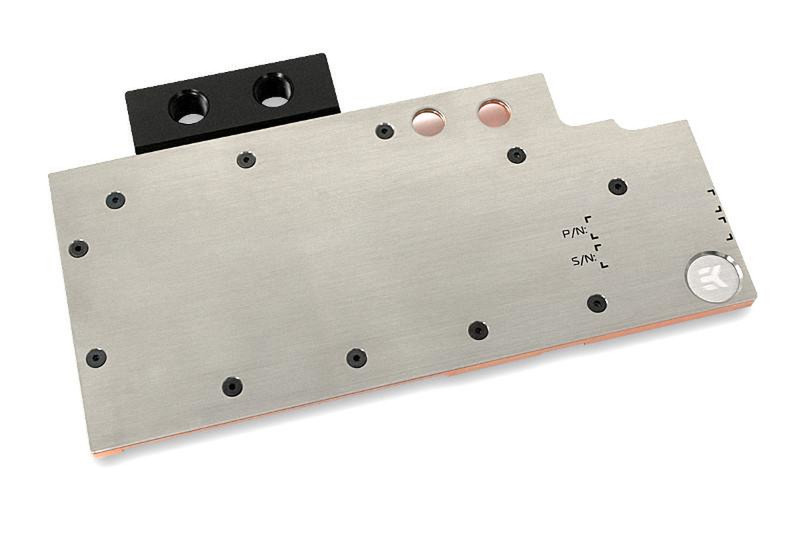

EK-FCQ6000 is a high performance full-cover water block for nVidia Quadro 6000- & 5000 series professional graphics card as well as Tesla C20xx & M20xx computing cards. Slim design allows up to seven graphics cards to be used in a single ATX form factor motherboard.
EK-FCQ6000 is a high performance full-cover water block for nVidia Quadro 6000- & 5000 series professional graphics card as well as Tesla C20xx & M20xx computing cards. Please check our Cooling Configurator online compatibility system for detailed compatibility list!

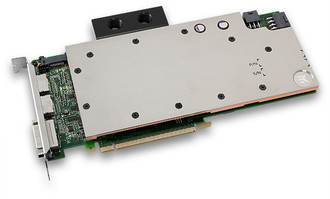

This water block directly cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the graphics card and it's VRM to remain 100% stable under any given workload. EK-FCQ6000 water block also features a high flow design therefore it can be easily used in liquid cooling systems using weaker water pumps.

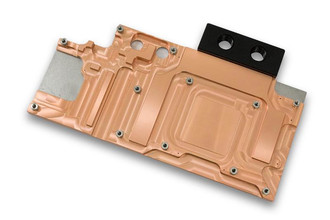

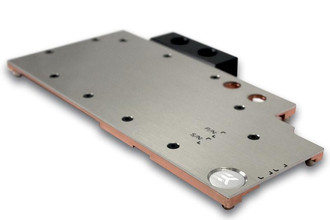

Base is made of C110 grade electrolytic copper while the top is made of laser cut stainless steel metal plate. The sealing is performed by quality NBR rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure. Block is mounted with enclosed M3x4- & M3x6 DIN7985 screws.
Any G1/4" threaded opening can be used as inlet or outlet.

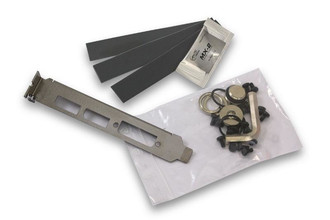

EK also encloses a single-slot I/O bracket which replaces the original two-slot in order to make installation of mutliple graphics cards easier.
This water block features a very slim design therefore up to seven EK-FCQ6000 water blocks can be used in a single ATX form factor motherboard. Contact us for custom multiple-port FC Terminal built per your demands.
