Single-slot water block f/ nVidia Tesla K20/K20x
EK-FCTK20 is a high performance full-cover water block for nVidia Tesla K20/K20x series professional computing cards. Please check our Cooling Configurator online compatibility system for detailed compatibility list!

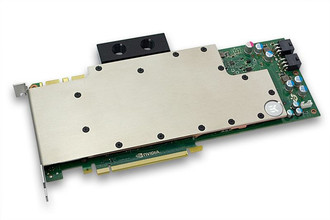

This water block directly cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the computing card and it's VRM to remain 100% stable under any given workload. EK-FCTK20 water block also features a high flow design therefore it can be easily used in liquid cooling systems using weaker water pumps.

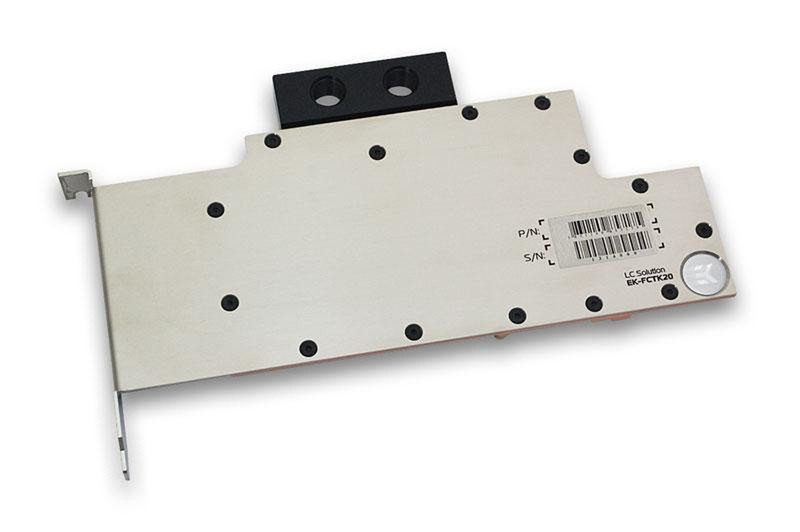

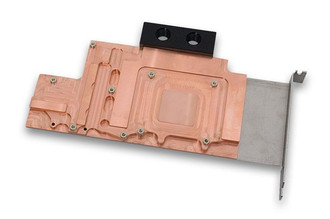

Base is made of C110 grade electrolytic copper while the top is made of laser cut stainless steel metal plate which also serves as a I/O bracket. The sealing is performed by quality NBR rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure. Block is mounted with enclosed M3x4 DIN7985 screws.
This water blocks lines-up with EK-FCQK5000. Moreover it features a very slim design therefore up to seven EK-FCQ6000 water blocks can be used in a single ATX form factor motherboard. Contact us for custom multiple-port FC Terminal built per your demands.
Any G1/4" threaded opening can be used as inlet or outlet.

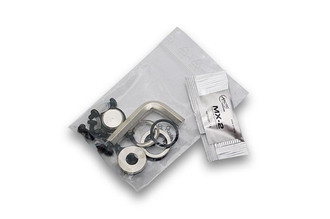

Enclosed in the box:
- EK-FCTK20 series single-slot water block with single FC Terminal
- mounting mechanism with screw-in brass standoffs
- thermal pads
- thermal grease (Arctic Cooling MX-2; 1g)
Made in Slovenia - Europe!
PLEASE NOTE:
- EKWB recommends the use of Tygon Norprene R6012 tubing for trouble-free (no plasticizer leakage), low maintainance systems. This industry grade tubing is the only solution for long lasting water cooling systems.
- Due to immense variety of fittings/barbs available on market and no prescribed standards, we guarantee compatibility only for connectors bought from our web site.
- This water block's connector terminal does not line up with EK-FCQ6000 but it does line up with EK-FCQK5000.
