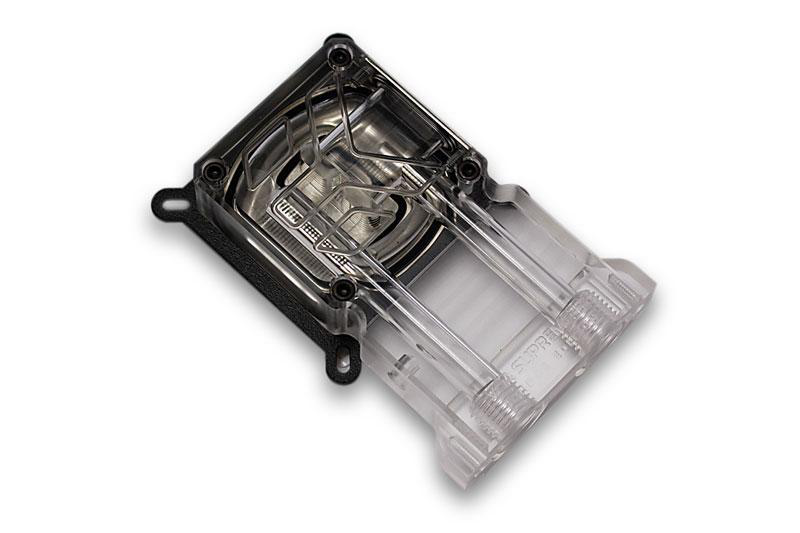

EK Water Blocks EK-VGA Supreme HF Bridge Edition - EN (Nickel)

EK-VGA Supreme HF Bridge Edition - EN (Nickel) EK-VGA Supreme HF Bridge Edition is a special edition of world-renown EK-VGA Supreme HF waterblock designed specifically for the use with EK-FC Bridge Parallel interconnects in multiple graphics card system.

EK-VGA Supreme HF is a direct successor of the world renown EK-VGA Supreme waterblock launched in 2007.
It's main improvements are:
- better flow: due to improved design up to 50% higher flow compared to EK-VGA Supreme.
- better cooling performance: up to 3°C lower GPU temperatures.

The EK-VGA Supreme HF's cooling engine uses fin design. The water (coolant) accelerates through thin jet plate's channels and turbolently continues it's path through 31 very thin channels which provide large cooling surface area. Very thin copper base bottom wall even further improves cooling performance.

The base plate is made of electroless nickel (EN) plated copper lapped and polished to +/- 0,0007 mm flatness. The top is made of quality cast acrylic material. Water block top has one slot for one 5mm LED diode.

EK-VGA Supreme HF Bridge Edition series waterblocks supports majority of nVidia and AMD high-end graphics cards.
