EK Water Blocks GA Z87X-OC

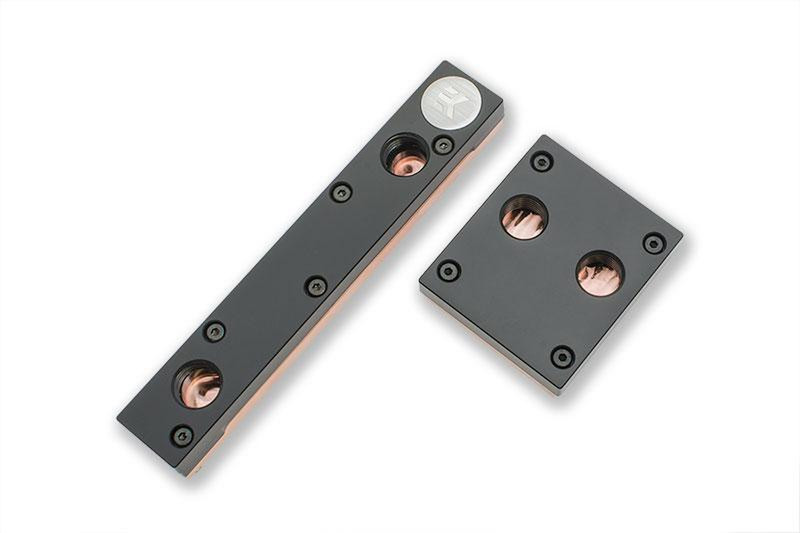

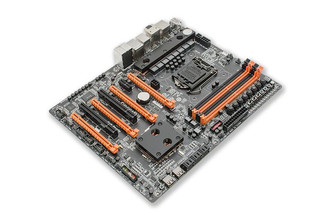

EK-FB KIT GA Z87X-OC - Acetal EK-FB KIT GA Z87X-OC full-board water block kit is a complete liquid cooling solution for GIGABYTE GA-Z87X-OC motherboard. The water blocks directly cools southbridge (PCH) and power regulation (VRM / MOSFETs) module. It is a high flow water block kit that can be easily used with systems using weaker water pumps.

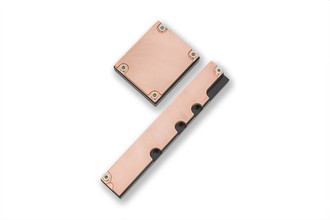

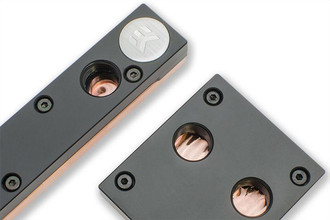

Base of the waterblock is made of electrolytic copper while the top is made of quality POM Acetal material. The sealing is performed by quality rubber gaskets.
Water block is mounted with enclosed M2.5x4 and M3x4 DIN7985 screws and M3 PVC washers. The 2.1 mm and 2.5 mm nickel plated brass screw-in standoffs are already preinstalled and allow easy installation.

Enclosed thermal pad is used on voltage regulator modules to improve cooling performance of the waterblock. On the southbridge (PCH) chip please use any electrically non-conductive thermal grease, e.g. Gelid GC-Extreme.
