Technical details
| Coolant capacity |
50 L |
| Radiator |
N |
| Fan |
N |
EK-SF3D Triple Point EVO incl. Modules

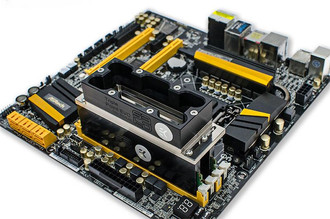

EK-SF3D Triple Point EVO is a high performance system memory (RAM) liquid nitrogen evaporation cooler for competitive overclockers. Used in conjunction with up to four Module Adapters this unit allows extreme overclocking of virtually any (DDR-)SDRAM memory module (of any generation).
About EK-SF3D Triple Point EVO:

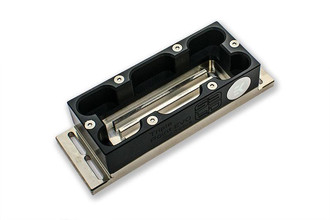

EK-SD3D Triple Point EVO is a product of joint venture between Petri 'SF3D' Korhonen, legendary overclocker and extreme evaporation cooler designer from Finland, and EK design & engineering team. The product is made of electrolytic grade nickel plated copper in order to provide the necassery mass to even out the temperature fluctuation. Top extension is made from high quality black anodized aluminium alloy.
About EK-SF3D Triple Point EVO Module Adapters:

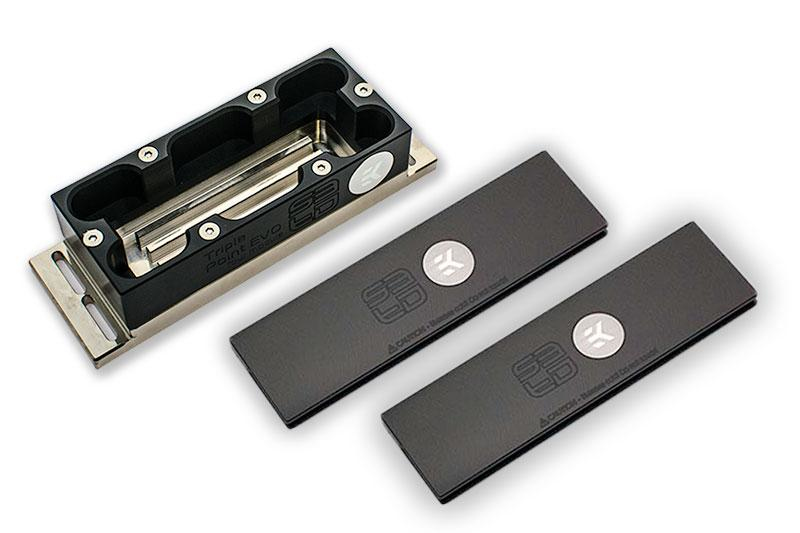

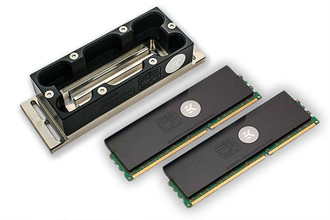

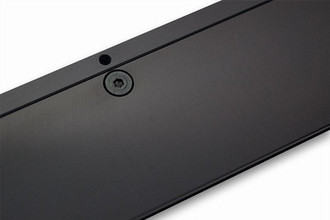

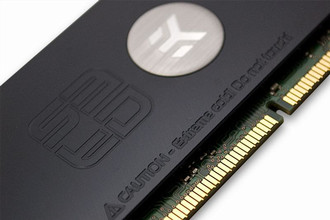

This product contains two (2) EK-SF3D Triple Point Module Adapter heatsinks. Each of these items are made of CNC machined high quality aluminium and feature black anodized finish. Each heatsink module consists of two separate plates while the DIMM memory module is sandwitched in between. Heat transfer between the memory module and aluminium heatsink adapter and copper base of the EK-SF3D Triple Point EVO is ensured by the use of enclosed Gelid GC-Extreme TIM (grease).
This product is ready to be used only with double-sided (single or dual ranked as per JEDEC) DIMM memory modules. In case single-sided DIMM module is used one needs to use 1.0mm thick thermal pad where no memory chips are used (not enclosed). Factory installed heatsink must be removed from each memory module prior to installation (if present).
