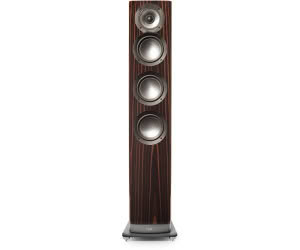

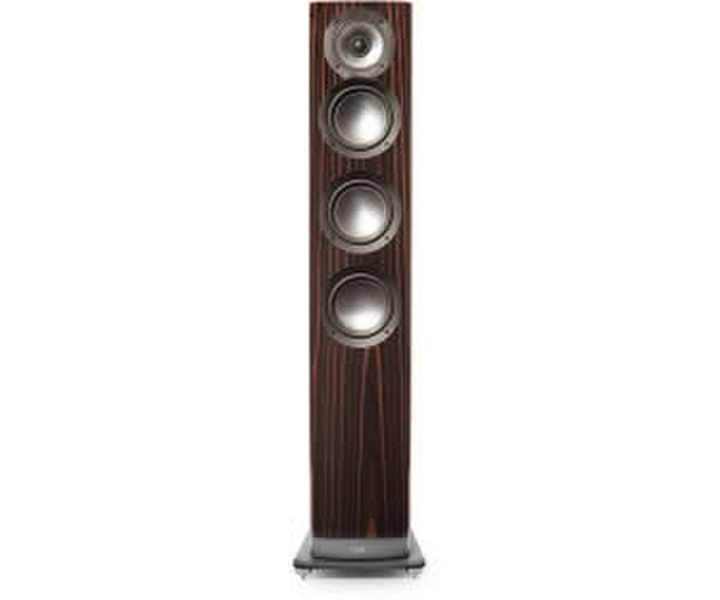

Elac Navis ARF51 Emara

Product type: Floor-standing speaker

Operation
Principle: active

Equipment
Sound function: Equalizer
Functions: Streaming
Control via: Toggle switch
Control properties: High-frequency level adjustment, Mid-frequency level adjustment, Treble/Bass, Gain, On/Off

Performance
Music power (PMPO): 300 Watt
Amplifier types: Class D, Class AB
System: 3-way
Transition frequencies: 260 Hz, 2,200 Hz
Frequency response: 43 - 28.000 Hz

Connections
analog inputs: XLR, Audio (RCA)

Design
Housing color: brown
Housing material: Aluminum
Surface: high gloss
Front color: brown
Housing surface: Veneer
Color: brown

Construction
Housing property: Bass reflex
Construction: Coaxial system
High-frequency chassis: 25 mm
Material High Tones: Aluminum
Tweeter design: Dome
Number of midrange drivers: 1
Midrange driver: 100 mm
Number of woofers: 3
Woofer: 150 mm
Number of bass reflex ports: 3
Position of bass reflex port: Back side

Dimensions and scope of delivery
Weight: 10,5 kg
Scope of delivery: Operating instructions
Width: 198 mm
Height: 1.025 mm
Depth: 240 mm

Further properties
Application area: Living room
Configurations: Floor, vertical
Market launch: 2019
