Technical details
| Maximum operating distance |
120 m |
<b>To Go Sets</b>

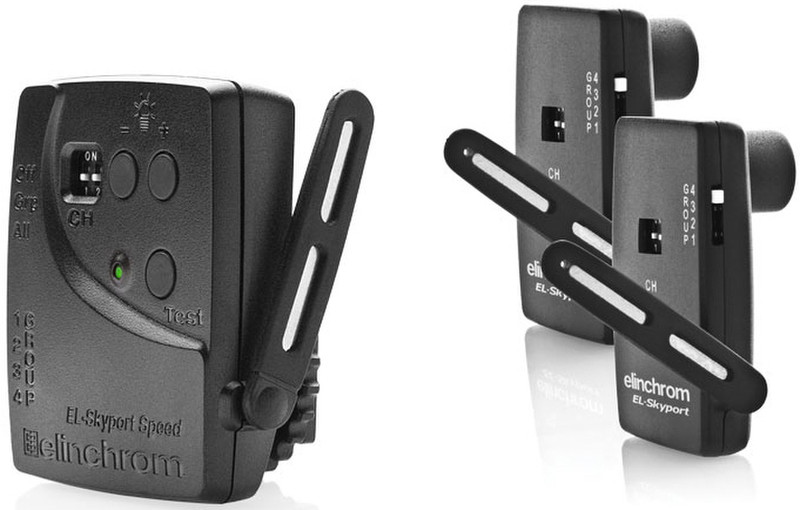

<b>RX Trigger Set</b>
- ELS Transmitter SPEED;
- ELS Transceiver RX;
- Synchron Cord PC-2.5 J / 20 cm.

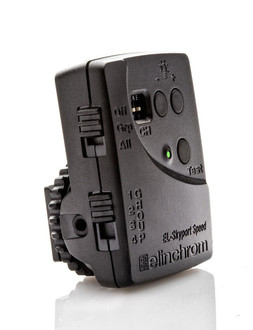

<b>ELS Transmitter SPEED</b>
The new ELS Transmitter Speed controls basic functions of BXRI 250/500, Ranger Quadra and D-Lite-it with the built-in ELS Receiver and Elinchrom RX units to which a Transceiver RX is attached. To control all RX functions of Style RX, Ranger RX, Ranger Quadra RX (Only Ranger Quadra RX with serial numbers from 4001 onwards) and Digital RX from a computer, the USB Transceiver RX 19354 / 19348 and the latest EL Skyport software are required. With this software, additonal features are available such as Strobing, Counter and more. The Transmitter synchronises remote flash units when each is fitted with either a “Universal” (fitting all flash brands) or the Transceiver RX (fitting Style RX, Digital RX and Ranger RX units) or units with EL-Skyport Tranceiver built-in (BXRi 250/500 & Ranger Quadra AS). The RX Transceiver also provides control over the power and modelling lamp of all Elinchrom RX flash units, directly from the Skyport Transmitter Speed.

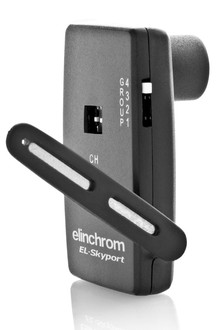

<b>ELS Transceiver RX</b>
This module fits only Elinchrom RX units, using the integrated multiple interface for triggering and for the remote computer operating option. No internal battery is required, just plug into a Style RX, Digital RX or Ranger RX flash unit (Please remember to double check the “Group” and “Channel Frequency” settings) and the Transceiver RX is ready to use. To control flash power, modelling lamp on/off and flash synchronisation, requires only the Transmitter Speed. To control all RX functions, the latest EL-Skyport software and the USB RX Speed module is required. The EL-Skyport software also offers additional features, such as the programmable “Flash Delay”, Flash-Counter and other control features that will be added as future software upgrades.
<b>Features</b>
- Switch to select 4 different work GROUPS;
- Dip switches to select 8 different FREQUENCY CHANNELS;
- The Tranceiver RX is required to control and set flash power and modeling lamp on/off from the Transmitter Speed or the Computer Remote Software.
- NOTE - The new Speed Sync feature is not available for the Transceiver RX module. The Speed Sync feature is only available with the Universal Speed module. Flash power settings are not available with the Universal Speed!

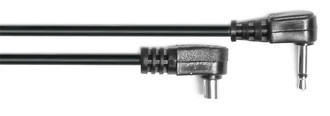

<b>Synchron Cord PC-2.5 J / 20 cm</b>
This cable connects the Prolinca IR-Transmitter with the camera.
