Memory
| Memory clock speed |
667 MHz |
| Maximum internal memory |
4 GB |
| Internal memory type |
DDR2-SDRAM |
| Internal memory |
0.5 GB |
Storage
| Hard drive speed |
5400 RPM |
| Total storage capacity |
80 GB |
| Card reader integrated |
N |
| Hard drive interface |
Serial ATA |
Performance
| Audio system |
ALC883 |
| Audio output channels |
6.1 channels |
Power
| Power supply input voltage |
200 - 240 V V |
| Power supply input frequency |
50 - 60 Hz |
| Power supply |
270 W |
Design
| Cable lock slot |
Kensington |
| Chassis type |
Desktop |
Ports & interfaces
| Headphone outputs |
1 |
| Microphone in |
Y |
| Serial ports quantity |
3 |
| Parallel ports quantity |
1 |
| Modem (RJ-11) ports |
1 |
| PS/2 ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Other features
| Built-in camera |
N |
| Wireless compliancy |
802.11b/g |
| Desktop power supply with standby +5V |
2.5 A |
| Networking features |
Ethernet |
| Power supply type |
Internal AC |
Processor
| Processor front side bus |
800 MHz |
| Processor cache type |
L2 |
| Processor cache |
0.512 MB |
| Processor frequency |
1.8 GHz |
Networking
| Wireless option type |
mini-PCI |
Graphics
| Discrete graphics adapter model |
Intel GMA 3100 |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

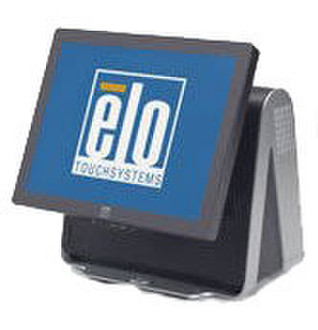

15D1 15" All-in-One LCD Desktop Touchcomputer 800MHz, 512MB, SATA, 5400RPM, 1024x768, 700x1, 16.7M, 225cd/m2
Tyco Electronics' Elo TouchSystems is the global leading brand in touch technology. The Elo TouchSystems product line encompasses the largest selection of touchscreen technologies and LCD touchmonitors, carefully designed for the demanding requirements of diverse applications, such as industrial, medical, POS, kiosks, retail, hospitality, transportation, office automation and gaming. Elo founders invented the touchscreen over 35 years ago. Since then, customers have used Elo touchscreens with one common, powerful result advanced computer technology simplified for all users.
The 15D1 15" All-in-One Touchcomputer brings style, flexibility and functionality to point-of-sale (POS), retail and hospitality businesses. With a wide array of field-installable peripherals, spill-resistant sealing, and a range of input/output port connection options, the 15D1 is versatile and powerful. It is designed with the future in mind, allowing easy serviceability of the main components and excellent performance utilizing the Intel Celeron 1.8 GHz processor. The 15D1 expands the Elo TouchSystems high profile family of reliable, easy-to-integrate multi-function touch solutions.
- Elo quality and reliability.
- Wide portfolio of touch technologies, each optimized for different operating characteristics and environments to suit your application requirements.
- Eliminate accidental damage when liquids are spilled.
- Elo touchcomputers have a history of being available—with an unchanged mechanical design—throughout all phases of project rollouts, and even when future spares are needed.
- Improved screen readability.
- Minimizes accidental or inadvertent changes to the display's controls.
- Provides fast, effective, and convenient security.
- Enables disk mirroring for data protection.
- Meets local agency approvals, as required in many countries.
- Minimizes downtime with peripherals that are easily installed in the field rather than factory.
- Easy serviceability minimizes downtime.
- Eliminate accidental disconnection and give a clean, professional look.
- Accessible POS/POI-focused input/output ports make installation of peripherals easy.
- Allow users to display customer-facing messages or advertising.
