Operational conditions
| Operating temperature (T-T) |
32 - 95 °F |
Storage
| Hard drive interface |
Serial ATA |
| Storage media type |
HDD |
| Total storage capacity |
320 GB |
| Hard drive capacity |
320 GB |
Processor
| Processor frequency |
2.5 GHz |
Networking
| Ethernet LAN data rates |
1000, 100, 10 Mbit/s |
Display
| Effective viewing area |
304 x 228 mm |
| Touchscreen technology |
Resistive |
Ports & interfaces
| Microphone in |
Y |
| Line-out |
Y |
| PS/2 ports quantity |
2 |
| Serial ports quantity |
1 |
Security
| Cable lock slot |
Kensington |
Memory
| Internal memory type |
DDR3 |
| Maximum internal memory |
16 GB |
| Memory clock speed |
1333 MHz |
| Internal memory |
2 GB |
Graphics
| Graphics adapter manufacturer |
Intel |
Additionally
| Ethernet LAN connection |
Y |
| Chipset |
Intel H61 Express |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Graphics |
HD Graphics |

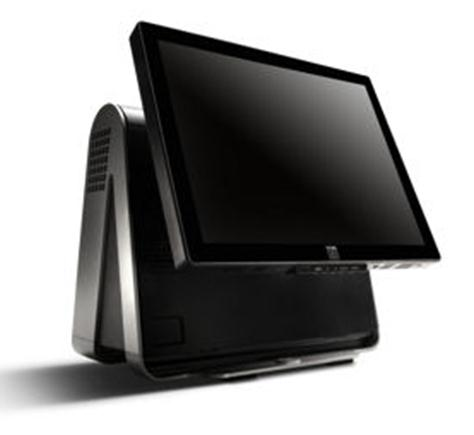

15D1 All-in-One Desktop Touchcomputer, Intel Celeron Dual-Core G540 2.5GHz, Intel H61 Express, Intel HD Graphics, 2GB 1333MHz DDR3 DIMM, 320 GB SATA HDD 2.5" 5400RPM, 38.1 cm (15 ") 1024 x 768, AccuTouch, No OS
The new D-Series Rev.D 15" All-in-One Touchcomputers continue to bring the same style, flexibility and functionality to point-of-sale (POS), retail and hospitality businesses as the previous versions. With a wide array of field-installable peripherals, spill-resistant sealing and a range of input/output port connection options, the D-Series rev.C models are versatile and powerful. They are designed with the future in mind, allowing easy serviceability of the main components and excellent performance .
New for the D-Series Rev.D models are the latest generation Intel 2.5GHz G540 Celeron Dual-Core processor and H61 chipset with advanced Intel® HD Graphics processing. The Intel 2.5GHz G540 Celeron Dual-Core processor is perfect for any POS application. For customers who require additional performance or more robust storage capabilities, the addition of a 2GB RAM option kit or second 320GB hard drive can significantly improve the performance or expand the data storage of the D-Series Rev.D touchcomputers. Also new for Rev.D is the addition of Microsoft Windows 7 Pro 64-bit operating system.
The Elo D-Series AiO’s come with a range of input/output port connection options to allow any POS configuration and support all manner of 3rd party peripherals such as cash drawers or printers, including our available peripherals. In addition, standard ports include 5 RS-232 serial ports, a 12V/24V switchable cash drawer port, 6 USB 2.0 ports and a 24V Powered USB Printer port, and a built-in DVI-D video output port which simplifies adding a secondary customer-facing LCD display (when used with the new rear-facing LCD bracket kit).
Customer friendly, field-installable peripherals include: magnetic strip reader (MSR) for reading credit cards, ID cards, loyalty cards, etc., a rear-facing VFD display for transaction verification, a biometric fingerprint reader for added security, and a bracket kit perfect for attaching the Elo Touch Solutions 0700L 7-inch touch display (or any 2nd LCD) for advertising or customer transaction information.
Typical applications for the D-Series AiO touchcomputer include POS (point-of-service), POI (point of information), loyalty systems, kiosk information systems, home control and internet access points, just to name a few.
