Processor
| Processor front side bus |
533 MHz |
| Processor frequency |
1.6 GHz |
| Processor cache |
0.512 MB |
Ergonomics
| On Screen Display (OSD) |
N |
Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
Y |
| Line-out |
Y |
Storage
| Storage media type |
HDD |
| Hard drive interface |
Serial ATA |
| Hard drive capacity |
160 GB |
| Total storage capacity |
160 GB |
Networking
| Wi-Fi |
N |
| Ethernet LAN data rates |
1000, 100, 10 Mbit/s |
Display
| Effective viewing area |
344.2 x 193.5 mm |
| Touchscreen technology |
Acoustic pulse recognition |
Memory
| Internal memory type |
DDR2 SO-DIMM |
| Maximum internal memory |
2 GB |
| Internal memory |
1 GB |
Graphics
| Graphics adapter manufacturer |
Intel |
Additionally
| Chipset |
Intel 945GSE Express |
| Graphics |
GMA 950 |
| Ethernet LAN connection |
Y |
| RS-232 port |
2 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

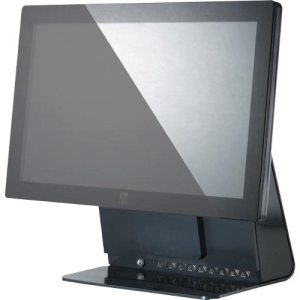

38.1 cm (15 ") All-in-One Point-Of-Sale Touchcomputer, Intel Atom N270 1.6GHz, 1GB DDR2 RAM, 160GB 2.5” SATA HDD, LAN, 4x USB 2.0, 2x DB9, VGA, 38W, 9.9lbs, Black
The Elo Touch Solutions 15E1 E-Series touchcomputer is an elegant, retail-hardened touch solution with a small footprint, developed to fit into hospitality and retail environments where its thin, sleek look complements the décor and ambiance. The compact, ruggedized touchcomputer is a space-saving all-in-one system that features a 15-inch widescreen zero-bezel touchscreen at the same price and performance as a separate monitor and PC setup. Designed to fit on top of a cash drawer, it can also be wall-or pole-mounted depending on the installation needs.
The 15E1 supports third party peripherals through four (4) USB and two (2) serial ports and has a second VGA output to add a second display for advertising and customer communication. The connections are all nicely hidden from view in the I/O bay, offering a clean, modern look while avoiding incidental disconnection.
The 15E1 touchcomputer is designed for convenient, on-the-spot service: easy access to main components allows easy service and upgrade capability.The 15E1 iTouch touchscreen a new benchmark for surface acoustic wave touch technology that features a sleek glass-to-edge seamless design.
A proprietary innovation, iTouch technology moves all of the touch detection hardware to the backside of the touchscreen. The result is a completely flat, pure-glass touch surface that is elegant and easy to clean. With no moving parts to wear out, touch response is fast, accurate, and drift-free using a finger, gloved hand, or soft stylus. Pure glass construction allows high light transmission without compromising durability or functionality.
