Processor special features
Processor ARK ID |
33910 |
Processor code |
SLB9J |
Intel Rapid Storage Technology |
N |
Graphics & IMC lithography |
45 nm |
Intel Fast Memory Access |
N |
Intel Flex Memory Access |
N |
Execute Disable Bit |
Y |
Idle States |
Y |
Thermal Monitoring Technologies |
Y |
Intel Trusted Execution Technology |
Y |
Intel Virtualization Technology (VT-x) |
Y |
Processor package size |
37.5 mm |
Intel® Quick Sync Video Technology |
N |
Intel® Insider™ |
N |
Intel 64 |
Y |
Intel Clear Video Technology |
N |
Intel Dual Display Capable Technology |
N |
Embedded options available |
Y |
Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
Intel® Anti-Theft Technology (Intel® AT) |
N |
Intel Hyper-Threading Technology |
N |
Intel® Turbo Boost Technology |
N |
Intel Enhanced Halt State |
Y |
Intel® My WiFi Technology (Intel® MWT) |
N |
Intel Clear Video Technology for MID |
N |
Intel vPro Technology |
N |
Intel VT-x with Extended Page Tables (EPT) |
N |
Intel FDI Technology |
N |
Enhanced Intel SpeedStep Technology |
Y |
Intel Demand Based Switching |
N |
Intel® Wireless Display (Intel® WiDi) |
N |
Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Ports & interfaces
Parallel ports quantity |
1 |
DVI port |
N |
PS/2 ports quantity |
2 |
Line-in |
Y |
Line-out |
Y |
Headphone outputs |
1 |
Microphone in |
Y |
Packaging content
Display included |
Y |
Handheld remote control |
N |
Graphics
On-board graphics adapter |
Y |
Discrete graphics adapter model |
Intel GMA 3100 |
Processor
Processor cache |
6 MB |
Processor lithography |
45 nm |
Thermal Design Power (TDP) |
65 W |
Processor codename |
Wolfdale |
Conflict Free processor |
N |
FSB Parity |
N |
Processor front side bus |
1333 MHz |
Processor cache type |
L2 |
Number of Processing Die Transistors |
410 M |
CPU multiplier (bus/core ratio) |
9 |
Processor operating modes |
64-bit |
Stepping |
E0 |
Processor cores |
2 |
Processor frequency |
3 GHz |
Tcase |
72.4 °C |
ECC supported by processor |
N |
Bus type |
FSB |
Other features
Floppy drive installed |
N |
Interface |
USB 2.0 |
Wireless technology |
802.11g |
TV tuner integrated |
N |
Networking features |
Ethernet |
Power supply type |
PSU |
Memory
Memory clock speed |
800 MHz |
Maximum internal memory |
4 GB |
Internal memory type |
DDR2-SDRAM |
Internal memory |
2 GB |
Storage
Total storage capacity |
160 GB |
Card reader integrated |
N |
Hard drive interface |
Serial ATA |
Additionally
InTru™ 3D Technology |
N |
Processing die size |
107 mm² |
Ethernet LAN connection |
Y |
Intel AES New Instructions |
N |
Ethernet LAN (RJ-45) ports quantity |
1 |

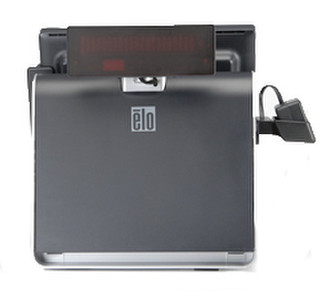

17D1 All-in-One LCD Desktop Touchcomputers, IntelliTouch, Intel Core 2 Duo E8400 (3.0GHz, 6MB L2 Cache, 1333MHz FSB), LGA775, 2GB 800MHz DDR2, SATA , 43.18 cm (17.0 ") Active matrix TFT LCD, 1280 x 1024, USB 2.0, Win XP Pro
The 17D Series 17" All-in-One Touchcomputers bring style, flexibility and functionality to point-of-sale (POS), retail and hospitality businesses. With a wide array of field-installable peripherals, spill-resistant sealing, and a range of input/output port connection options, the 17D1 and 17D2 are versatile and powerful. These touchcomputers are designed with the future in mind, allowing easy serviceability of the main components and excellent performance utilizing Intel Dual-Core 2.2 GHz or Intel Core Duo 3.0 GHZ processors. The 17D Series expands the Elo TouchSystems high profile family of reliable, easy-to-integrate multi-function touch solutions.
- Elo quality and reliability
- Wide portfolio of touch technologies, each optimized for different operating characteristics and environments to suit your application requirements
- Eliminate accidental damage when liquids are spilled
- Elo touchcomputers have a history of being available—with an unchanged mechanical design—throughout all phases of project rollouts, and even when future spares are needed
- Improved screen readability
- Minimizes accidental or inadvertent changes to the display's controls
- Provides fast, effective, and convenient security
- Enables disk mirroring for data protection
- Meets local agency approvals, as required in many countries
- Minimizes downtime with peripherals that are easily installed in the field rather than factory
- Easy serviceability minimizes downtime
- Eliminate accidental disconnection and give a clean, professional look
- Accessible POS/POI-focused input/output ports make installation of peripherals easy
- Allow users to display customer-facing messages or advertising
- Customer satisfaction and peace of mind
