Display
| Sync-on-green (SOG) |
Y |
| Separate H/V sync |
Y |
| Display diagonal |
19 " |
| Viewable size, horizontal |
376 mm |
| Viewable size, vertical |
301 mm |
| Aspect ratio |
5:4 |
| Digital vertical frequency |
56.3 - 75 Hz |
| Digital horizontal frequency |
31.5 - 80 kHz |
| HD type |
Not supported |
| Response time |
20 ms |
| Native aspect ratio |
5:4 |
| Composite sync |
Y |
| Contrast ratio (typical) |
1300:1 |
| Display resolution |
1280 x 1024 pixels |
| Viewing angle, horizontal |
178 ° |
| Viewing angle, vertical |
178 ° |
| Display brightness |
300 cd/m² |
| 3D |
N |
| Display |
LCD |
Multimedia
| Built-in subwoofer |
N |
| Number of speakers |
2 |
| RMS rated power |
4 W |
| TV tuner integrated |
N |
| Built-in camera |
N |
| Built-in speaker(s) |
Y |
Ports & interfaces
| DVI-D ports quantity |
1 |
| Audio input |
Y |
| VGA (D-Sub) ports quantity |
1 |
Other features
| Placement supported |
Horizontal |
| HDMI |
N |
| Maximum resolution |
1280 x 1024 pixels |
| Number of products included |
1 pc(s) |
Weight & dimensions
| Weight with stand |
8000 g |
| Width (with stand) |
429 mm |
| Weight |
6100 g |
| Depth (with stand) |
212 mm |
| Height (with stand) |
390 mm |
Ergonomics
| Picture-in-Picture |
N |
| VESA mounting |
Y |
| Height adjustment |
N |
| Plug and Play |
Y |
| Cable lock slot |
Y |
| VESA mounting interfaces |
100 x 100 mm |
| Number of OSD languages |
9 |
| Tilt adjustment |
Y |
| On Screen Display (OSD) languages |
CHI (SIMPL), DUT, ENG, ESP, FRE, ITA, JPN, POL, SWE |
| On Screen Display (OSD) |
Y |
Operational conditions
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 90% |
Power
| Power consumption (max) |
48 W |
Certificates
| Certification |
UL/cUL (UL 60601-1:2003), FCC, CE, VCCI, C-Tick (B), IPX1, CB, Argentina S-mark, CISPR 11:2003+A1:2004 B, IEC 60529:1989+A1:1999\nAsia: UL, cUL, CB, MPR II, CE, FCC, VCCI, IC, C-Tick (Class B), Argentina S, BSMI, MIC,\nCCC, China RoHS; meets IEC/EN 6100-4-3 |
Packaging data
| Package depth |
315 mm |
| Package weight |
11800 g |
| Package width |
540 mm |
| Package height |
510 mm |
Additionally
| Display number of colors |
16.78 million colours |
| Colour of product |
Black, Grey |
| On/Off switch |
Y |
| Energy efficiency compliance |
Unspecified |
| Operating temperature range (T-T) |
0 - 40 °C |
48.26 cm (19 ") TFT-LCD, 1280 x 1024, 5:4, 20 ms, 300 cd/m2, 1300:1, VGA, DVI-D, 6.1 kg, Dark Grey

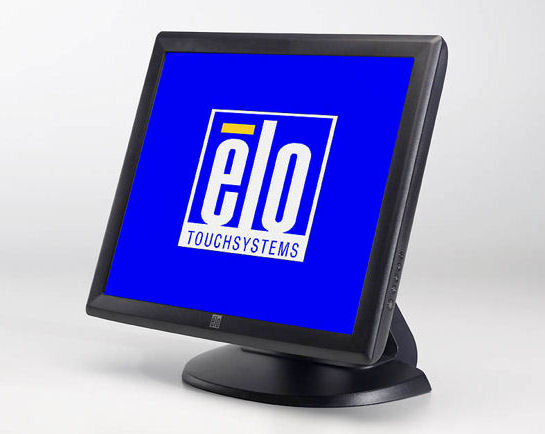

The fully featured 1928L touchmonitor offers best in class optical performance mated to the leading touch technologies–IntelliTouch surface acoustical wave and AccuTouch five-wire resistive–along with a combination touch controller, DVI, VGA and built-in speakers. The product can be ordered in beige or gray color, touch and non-touch enabled versions.
The 1928L carries a wide array of certifications and includes an innovative IPX1 enclosure design which ensures that the entire touchmonitor sheds water and is safe from liquid drops and spills. As a result the 1928L is an excellent fit for any application benefiting from DVI-D input, speakers and best in class image performance.
Features
- IPX1 drip-proof enclosure
- Long lasting product cycle–enclosure controlled by Elo specifications
- Touch can be activated with gloved hands
- 5-second power down delay (prevents accidental power shut down)
- Leading edge optical performance
- 178° x 178° viewing angle
- 1300:1 contrast ratio
- 300-nit brightness
- Analog and digital (DVI-D) video inputs
- Built in speakers located in the display head
- "Designed for touch" features such as a stable tilt stand
- Available with AccuTouch Five-Wire Resistive Technology, Acoustic Pulse Recognition Technology, IntelliTouch Surface Wave Technology, and as non-touch enabled version
