Ports & interfaces
| Line-out |
Y |
| VGA (D-Sub) ports quantity |
1 |
| Microphone in |
Y |
Operational conditions
| Operating temperature (T-T) |
32 - 95 °F |
Storage
| Hard drive interface |
Serial ATA |
| Storage media type |
HDD |
| Hard drive speed |
5400 RPM |
| Total storage capacity |
320 GB |
| Hard drive capacity |
320 GB |
Processor
| Processor frequency |
1.86 GHz |
| Processor cache |
1 MB |
Networking
| Ethernet LAN data rates |
1000, 100, 10 Mbit/s |
Display
| Effective viewing area |
476.6 x 268.1 mm |
| Touchscreen technology |
Resistive |
Memory
| Internal memory type |
DDR3 |
| Internal memory |
2 GB |
| Maximum internal memory |
4 GB |
Graphics
| Graphics adapter manufacturer |
Intel |
Additionally
| Ethernet LAN connection |
Y |
| RS-232 port |
2 |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Chipset |
Intel NM10 Express |
| Graphics |
GMA 3600 |

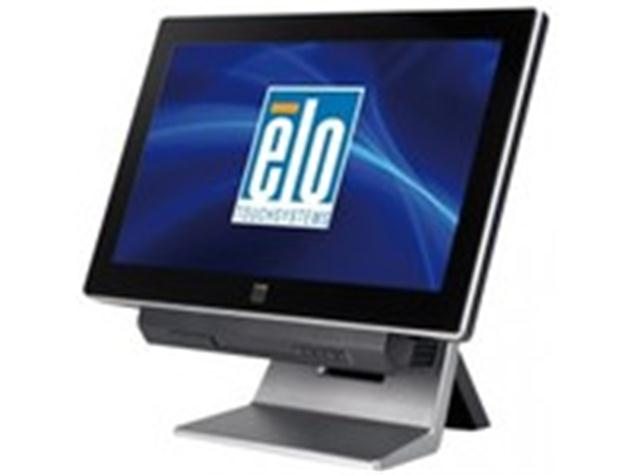

22C2 All-in-One Desktop Touchcomputer, Intel Atom Dual-Core N2800 1.86GHz, Intel NM10 Express, Intel GMA 3600, 2GB 1333MHz DDR3 SO-DIMM, 320 GB SATA HDD 2.5" 5400RPM, 54.61 cm (21.5 ") 1920 x 1080, AccuTouch, No OS
The new C-Series Rev.B All-in-One touchcomputers continue to bring the same style, flexibility and functionality to high-end point-of-sale (POS), point-of-information (POI), retail and hospitality businesses as the previous versions. The C-Series AiO’s provide highly configurable, ruggedized touchcomputers in two screen sizes: 19-inch and 22-inch, plus the choice of industry leading Elo touchscreen technologies, now featuring iTouch Plus Zero-bezel Multi-touch Surface Acoustic Wave. The C-Series touchcomputer family has been developed to meet the demanding needs of a wide variety of point-of-sale (POS), point-of-information (POI), and point-of-service venues, including retail and hospitality display units, customer loyalty systems, internet access sites and mobile kiosks.
The C-Series All-in-One touchcomputer platform offers big, bright LED HD displays in a wide-aspect ratio. This makes the C-Series an excellent choice for retail point-of-information, counter top product demonstration or customer information systems. In addition, hospitality host and seating systems that depend on an accurate display of restaurant layouts can utilize the wide screen of the C-Series and the additional screen space available to display their seating/ floorspace. The C-Series is RoHS compliant, Energy Star 5.2 certified, and includes an enclosure design with an IPX1 spill-resistant rating, protecting the unit from liquid drips and spills. The C-Series is an excellent fit for a wide variety of retail and hospitality settings.
The C-Series touchcomputers bring flexibility with your choice of connectivity, serviceability with easy access to key components, and a choice of processing power. In addition, an array of field-installable peripherals, spill-resistant sealing, and a full range of standard of input/output port connections make the C-Series both versatile and powerful.
The C-Series is engineered for flexibility, with optional memory and storage configurations, as well as scalable computing power featuring two high-performance processor configurations:
