Display
| Display diagonal |
27 " |
| Vertical scan range |
50 - 75 Hz |
| Viewable size, horizontal |
597.6 mm |
| Viewable size, vertical |
336.2 mm |
| Aspect ratio |
16:9 |
| HD type |
Full HD |
| Response time |
12 ms |
| Native aspect ratio |
16:9 |
| Contrast ratio (typical) |
3000:1 |
| Display resolution |
1920 x 1080 pixels |
| Viewing angle, horizontal |
178 ° |
| Viewing angle, vertical |
178 ° |
| Display brightness |
300 cd/m² |
| Display technology |
TFT |
| 3D |
N |
| Display |
LED |
Ports & interfaces
| DVI port |
Y |
| DVI-D ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Power
| Power consumption (typical) |
38 W |
| Power consumption (off) |
0.4 W |
Ergonomics
| VESA mounting |
Y |
| Height adjustment |
N |
| VESA mounting interfaces |
200 x 100 mm |
| On Screen Display (OSD) |
Y |
Operational conditions
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 90% |
Weight & dimensions
| Depth |
42.6 mm |
| Weight |
7500 g |
| Width |
632.2 mm |
| Height |
373.4 mm |
Multimedia
| TV tuner integrated |
N |
| Built-in camera |
N |
| Built-in speaker(s) |
N |
Packaging data
| Package depth |
233 mm |
| Package weight |
10500 g |
| Package width |
788 mm |
| Package height |
536 mm |
Additionally
| Display scan frequency (horizontal) |
31.5 - 80 kHz |
| Display number of colors |
16.78 million colours |
| Colour of product |
Black |
| Energy efficiency compliance |
Unspecified |
| Operating temperature range (T-T) |
0 - 40 °C |

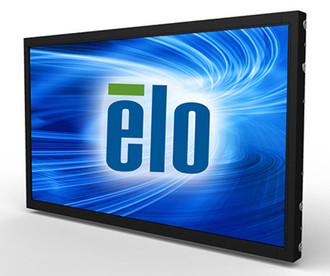

2740L, 68.58 cm (27 ") , 1920 x 1080, 300cd/m2, 12ms, 178/178, 3000:1, VGA, DVI-D
LED backlighting also allows for a slim mechanical design with narrow outside dimensions giving kiosk integrators an edge in developing the most aesthetically pleasing enclosure designs. Compared to LCDs with CCFL backlights, LED displays consume less power, and generate less heat.
Because the product enclosure is controlled by Elo Touch Solutions’ specifications and tooling, Elo's open-frame monitors have a long-lasting product cycle, which is important to maintain continuity through all phases of project rollouts and servicing. Future-generation panels can be phased in without any external changes needed to the kiosk or cabinet
