Display
| Vertical scan range |
47 - 63 Hz |
| Active display area (W x H) |
1210 x 680 mm |
| HD type |
Full HD |
| Native aspect ratio |
16:9 |
| Display type |
LED |
Ports & interfaces
| PC Audio in |
Y |
| DVI port |
N |
| USB port |
N |
| HDMI ports quantity |
1 |
| VGA (D-Sub) input ports |
1 |
Performance
| TV tuner integrated |
N |
| Number of OSD languages |
8 |
| Mac operating systems supported |
Y |
| On Screen Display (OSD) |
Y |
Additionally
| Display scan frequency (horizontal) |
31.5 - 73 kHz |
| Ethernet LAN connection |
N |

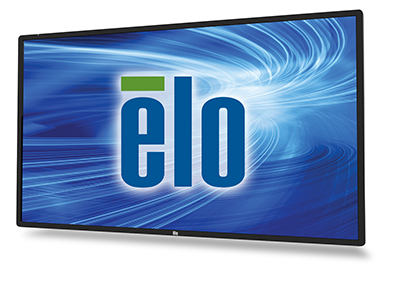

138.684 cm (54.6 ") TFT LED, 1920 x 1080, 16:9, CR 4000:1, 6.5ms, VGA, HDMI, Audio In / Out
The 5501LT Interactive Digital Signage display combines an infrared multi-touch touchscreen with a professional-grade, large format display in a slim, integrated package. For retail, hospitality, commercial real estate, education and other commercial applications, the large wide-screen format offers a high-quality, interactive canvas for attracting and engaging consumers. The 5501LT offers system integrators and value-added resellers (VARs) a high performance solution that is easy to deploy and maintain. With a total thickness of 3.4 inches (87mm), the 5501LT is compliant with the ADA requirement of less than 4” protrusion for wallmounted products when used with a compatible wall-mount.
With a 500 nit LED panel, the 5501LT is a bright, high quality display suitable for public environments. The infrared touchscreen enables up to ten simultaneous touches for multi-user interaction. This touch technology offers a fast and extremely sensitive response similar to the experience on mobile devices. It is also compatible with Microsoft Windows 7, Windows 8 and Android operating systems. The touchscreen is 4mm thick with fully tempered glass.
Elo IDS-01 series displays are compatible with Intel's Open Pluggable Standard (OPS) for Digital Signage with an available adapter kit. Optional, high performance computer modules are available which turn the 5501LT into a completely integrated all-in-one computer—without the need for any cables or additional mounting hardware. (OPS) for Digital Signage with an available adapter kit. Optional, high performance computer modules are available which turn the 5501LT into a completely integrated all-in-one computer—without the need for any cables or additional mounting hardware.
- Compatible with Intel Open Pluggable Standard (OPS) with available adapter kit (E102270), sold separately.
- Available with infrared touchscreen technology for a sensitive multi-touch response with any input device.
- Pure-glass touchscreen delivers crystal clear images.
- Housed in a highly durable steel chassis for a long-life of reliable performance.
- VESA mounting points (Elo wallmount kit E248743) for stable touch.
- Aspect ratio 16:9.
- High Definition (PHD) 1080p (1920 x 1080 native resolution).
- Seamless, field installable, computer module, docking integration.
- Heat strengthened glass per ASTM C1048; UL60950 ball drop test compliant.
- Analog VGA and HDCP-capable HDMI 1.3, video.
- Video auto-detect: When selected, display will switch to last known good input connected.
Computer modules are available in a choice of four models: ECMG2B-i3 based on a 3.4GHz, Intel Core 4th Gen i3 processor and HD4400 graphics; ECMG2B-i5 based on a 3.7GHz, Intel Core 4th Gen i5 processor and HD4600 graphics; ECMG2B-i7 based on a 4.0GHz, Intel Core 4th Gen i7 processor and HD4600 graphics; ECMG2-AND based on a Qualcomm Snapdragon processor.
The high performance, commercial-grade computer modules make the 5501LT a reliable platform that is interoperable with most content management servers and supports optimal partitioning of locally cached and network streamed content.
