Memory
| Memory slots type |
SO-DIMM |
| Maximum internal memory |
8 GB |
| Internal memory type |
DDR3-SDRAM |
| Number of memory slots |
2 |
| Memory clock speed |
1333 MHz |
| Internal memory |
4 GB |
Multimedia
| Number of speakers |
2 |
| Card reader integrated |
N |
Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
| Microphone in |
Y |
| DC-in jack |
Y |
| Line-out |
Y |
| Line-in |
Y |
| DVI port |
N |
| ExpressCard slot |
N |
| Serial ports quantity |
2 |
Processor
| Processor frequency |
3 GHz |
| Processor cores |
4 |
| Processor cache |
6 MB |
Storage
| Storage media type |
HDD |
| Hard drive interface |
Serial ATA |
| Total storage capacity |
320 GB |
| Hard drive speed |
5400 RPM |
| Hard drive capacity |
320 GB |
Networking
| Ethernet LAN data rates |
1000, 100, 10 Mbit/s |
Display
| Effective viewing area |
476.6 x 268.1 mm |
| Touchscreen technology |
Surface acoustic wave |
Security
| Cable lock slot |
Kensington |
Graphics
| Graphics adapter manufacturer |
Intel |
Additionally
| Chipset |
Intel H61 Express |
| RS-232 port |
2 |
| Ethernet LAN connection |
Y |
| System bus data transfer rate |
5 GT/s |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Graphics |
HD Graphics 2500 |

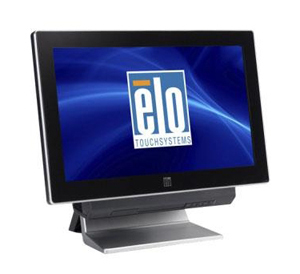

55.88 cm (22 ") IntelliTouch Zero-Bezel/iTouch Plus, Intel Core i5-3550S, 4GB 1333MHz DDR3, 320GB HDD, Fan-cooled, Dark Grey, w / o OS
The new C-Series Rev.B All-in-One touchcomputers continue to bring the same style, flexibility and functionality to high-end point-of-sale (POS), point-of-information (POI), retail and hospitality businesses as the previous versions. The C-Series AiO’s provide highly configurable, ruggedized touchcomputers in two screen sizes: 19-inch and 22-inch, plus the choice of industry leading Elo touchscreen technologies with IntelliTouch Zero-Bezel/ iTouch Plus surface acoustic wave touch technology. The C-Series touchcomputer family has been developed to meet the demanding needs of a wide variety of point-of-sale (POS), point-of-information (POI), and point-of-service venues, including retail and hospitality display units, customer loyalty systems, internet access sites and mobile kiosks.
The C-Series All-in-One touchcomputer platform offers big, bright LED HD displays in a wide-aspect ratio. This makes the C-Series an excellent choice for retail point-of-information, counter top product demonstration or customer information systems. In addition, hospitality host and seating systems that depend on an accurate display of restaurant layouts can utilize the wide screen of the C-Series and the additional screen space available to display their seating/floorspace. The C-Series is RoHS compliant, Energy Star 5.2 certified, and includes an enclosure design with an IPX1 spill-resistant rating, protecting the unit from liquid drips and spills. The C-Series is an excellent fit for a wide variety of retail and hospitality settings.
