Ports & interfaces
| Serial ports quantity |
1 |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| VGA (D-Sub) ports quantity |
2 |
| DC-in jack |
Y |
Processor
| Processor cache |
4 MB |
| Processor cores |
2 |
| Processor frequency |
3.1 GHz |
Storage
| Solid-state drive capacity |
128 GB |
| Total storage capacity |
128 GB |
| Solid-state drive interface |
Serial ATA |
Memory
| Memory clock speed |
1600 MHz |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Internal memory type |
DDR3L-SDRAM |
| Maximum internal memory |
16 GB |
| Internal memory |
4 GB |
Networking
| Wi-Fi |
Y |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Additionally
| Chipset |
Intel H81 |
| System bus data transfer rate |
5 GT/s |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
17'', 5:4, 1280 x 1024 60Hz, TFT LCD, Multi touch, Core i3 2.1 GHz 4350T, 128 GB SSD, 4 GD 1600MHz DDR3L, 150 W
Overview

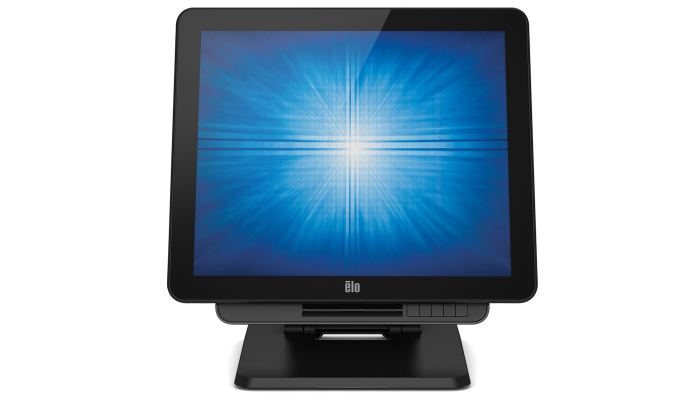

The Elo 17-inch X-Series is an innovative, all-in-one, standard-aspect touchscreen computer that offers a sleek form factor with flexibility, power and endless configuration possibilities. With a compact design, the X-Series is ideal for applications in any retail, self-service or hospitality environment that requires a small footprint POS terminal or kiosk. The highly versatile platform provides maximum configurability and offers you unprecedented freedom of choice in the design of your AiO system.
Configurability.
A wide range of processor, interface, storage, expansion, operating system and mounting options allows you to further tailor the X-Series to meet your needs. Choose from IntelliTouch® surface acoustic wave (SAW), AccuTouch® five-wire resistive or TouchPro™ projected capacitive (PCAP) touch technologies to meet the demands of your environment. With processor options that scale from the value-based Intel® Celeron J1900 to the high-performance Intel® Core i5, the Elo X-Series offers one of the most powerful systems in its class.
Versatility.
Every X-Series system is built with transactions in mind, and the wide assortment of peripheral options reflect just that. Whether for staff- or guest-facing applications, easily attach any combination of up to three peripherals, including an EMV reader, a near-field communication (NFC/RFID) reader, mag stripe reader (MSR), barcode reader or fingerprint scanner to the bezel of the X-Series via a universal snap-in connector. To enhance customer engagement at checkout, choose from a wide array of customer facing displays ranging from 2-line to 20-inch. For self-service applications, transform the Elo X-Series from counter-top terminal to kiosk with the optional wall-mount kit.
Reliability.
Rigorously tested and backed by a three-year warranty, the X-Series delivers superior quality and reliability. The splash-proof housing and rugged retail-hardened design easily withstand the adverse conditions associated with most commercial environments. The unique, modular chassis provides easy access to storage and memory for quick, tool-less service.
Other features.
- Small footprint, retail-hardened design
- Field serviceable design allows for quick troubleshoot and fix, no tools needed
- Full range of standard connectivity ports for retail POS, POI and hospitality applications with option to add expansion module if needed
- Removable base with 100mm VESA mounting
- Kensington lock
